Monitor GDS data
■ Check Actuation Test
1.

Vehicle Parked & Ignition ON.

2.

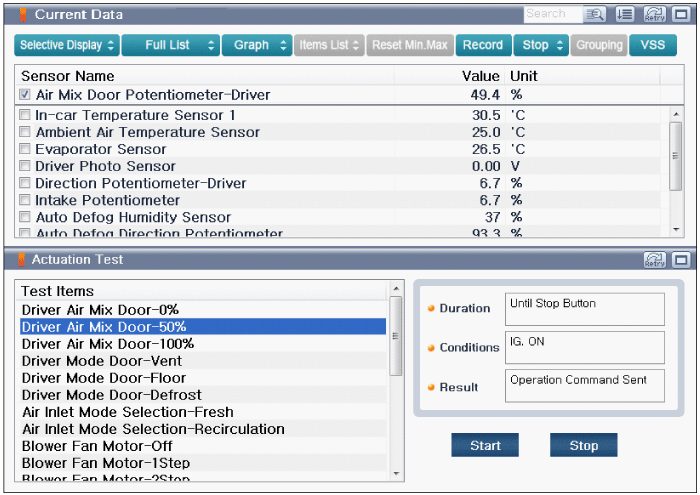

Connect Scantool and select "Data Analysis" mode.

3.

Select "Air Mix Door Potentiometer-Driver" parameter on the "Current Data" with scantool.

4.

Select "Actuation Test" Driver Air Mix Door - 0% / 50% / 100% in order.

5.

With performing Actuation test, check that the value of Air Mix Door potentiometer follows is changed and close to the value of Actuation Test.

Specification : Check that the value of Air Mix Door Potentiometer at current data should be close to the value of the acutation test.

6.

Does the value of current data follow in accordance with the each actuation test ?

▶ Fault is intermittent caused by poor contact in the sensor’s and/or Control module’s connector or was repaired and Control module’s memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage.

▶ Repair or replace as necessary and then, go to "Verification of Vehicle Repair" procedure.

▶ Go to " Wiring Inspection " procedure.
