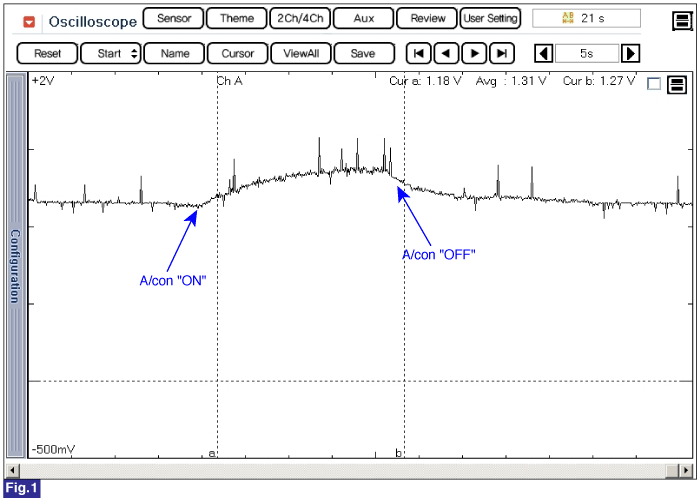

Fig.1) Waveform of A/C pressure transducer in accordance with aircon operation.(aircon compressor operation)

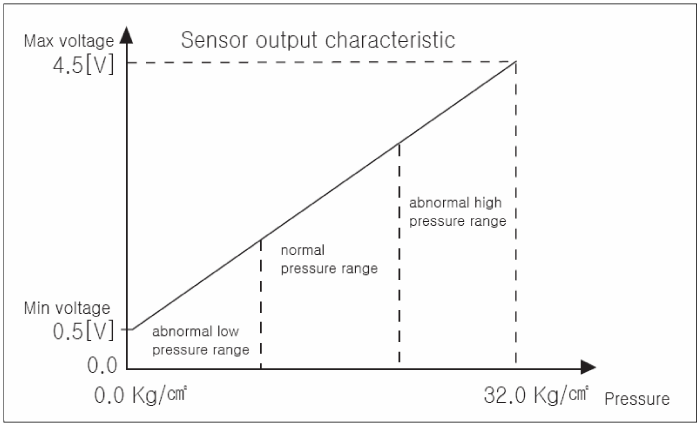

Output signal(voltage) changes in accordance with the amount of refrigerant and the change of weather. Check if normal pressure change occurs in accordance with aircon compressor operation at normal pressure range shown in "Specification".
