5.
Erase the DTC and operate the vehicle within DTC Enable conditions in General information.
Connect GDS to "DATA LINK CONNECTOR(DLC)".
IG key "ON", Engine "OFF".

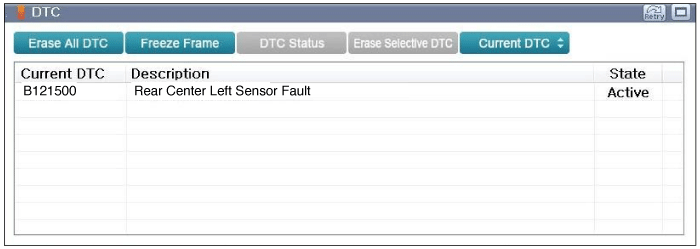

Select "Diagnostic Trouble Codes(DTC)" with GDS.
Monitor the diagnostic trouble code and present of the trouble code.
Erase the DTC and operate the vehicle within DTC Enable conditions in General information.
Is the DTC outputted again?
 | ▶ Go to "Wiring Inspection" procedure. |
 | ▶ Fault is intermittent caused by poor contact in "BCM" or "REAR PARKING ASSIST SENSOR LH(CENTER)"'s connector or was repaired and "BCM" memory was not cleared. → Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. → Repair or replace as necessary, go to "Verification of Vehicle Repair" procedure. |
