2.
Monitor the “Current Data” to "ECU, KEY, Smartra STATUS' Parameter on the GDS.
Specification : 'LEARNT'

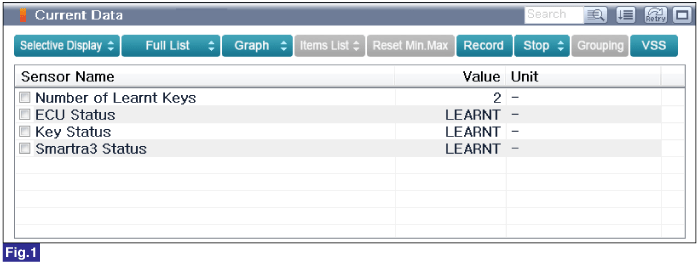

Fig.1) This data show that 2 keys have been taught, ECU has been learnt, Key in key cylinder has been learnt and SMARTRA3 has been learnt.
IGN "ON" & Engine "OFF" with key intended to register
Monitor the “Current Data” to "ECU, KEY, Smartra STATUS' Parameter on the GDS.
Specification : 'LEARNT'
Fig.1) This data show that 2 keys have been taught, ECU has been learnt, Key in key cylinder has been learnt and SMARTRA3 has been learnt.
Has the "Smartra STATUS" been learnt ?
 | ▶ Check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, damage on the ECM or SMARTRA. And this DTC has not erased in previous repair. Repair or replace as necessary and then go to "Verification of Vehicle Repair" procedure. |
 | ▶ Go to "Component Inspection" Procedure. |
