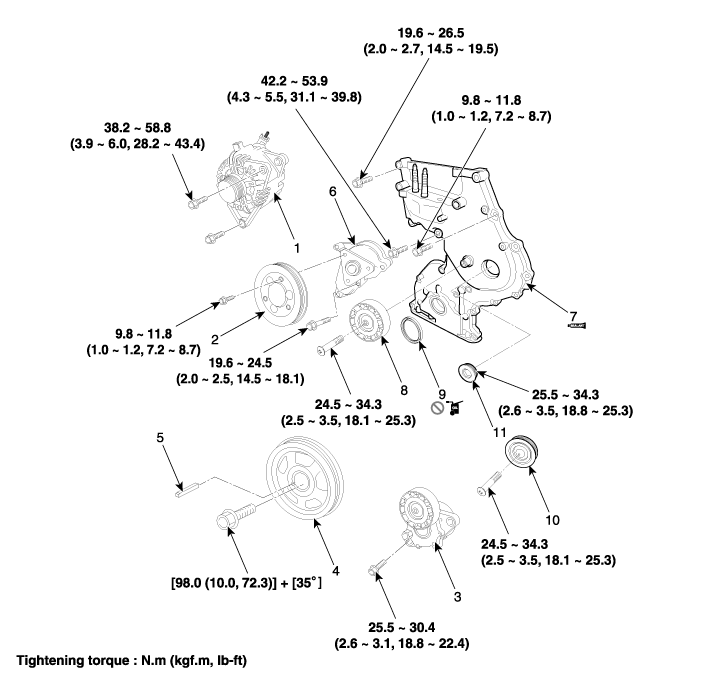

1. Alternator

2. Water pump pulley

3. Drive belt tensioner

4. Crankshaft pulley

5. Key

6. Water pump

7. Timing chain cover

8. Idler (#1)

9. Front oil seal

10. Idler (#2)

11. Plug

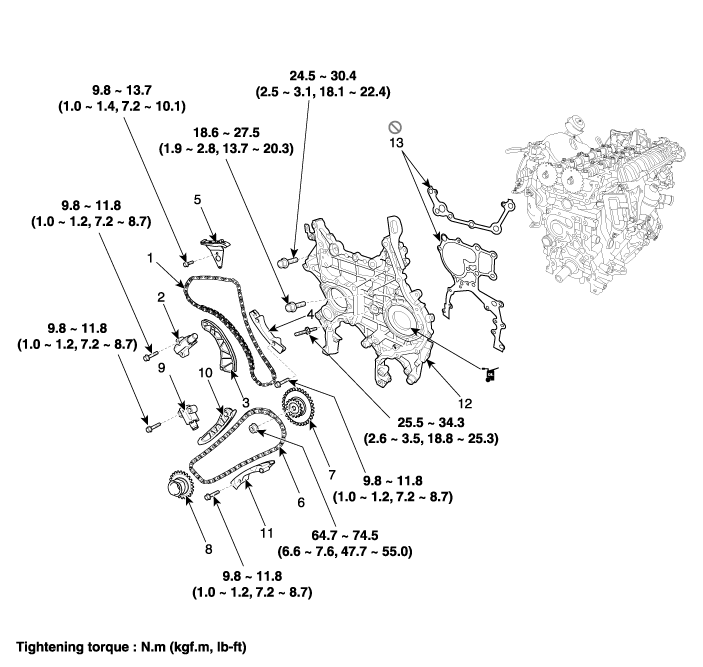

1. Timing chain "C"

2. Timing chain "C" auto tensioner

3. Timing chain "C" lever

4. Timing chain guide "1"

5. Timing chain guide "2"

6. Timing chain "A"

7. High pressure pump sprocket

8. Crankshaft sprocket

9. Timing chain "A" auto tensioner

10. Timing chain "A" lever

11. Timing chain guide "1"

12. Timing chain case

13. Timing chain case gasket

14. Camshaft sprocket
