Prolonged and repeated contact with mineral oil will result in the removal of natural fats from the skin, leading to dryness, irritation and dermatitis. In addition, used engine oil contains potentially harmful contaminants which may cause skin cancer.
Exercise caution in order to minimize the length and frequency of contact of your skin to used oil. Wear protective clothing and gloves. Wash your skin thoroughly with soap and water, or use water-less hand cleaner, to remove any used engine oil. Do not use gasoline, thinners, or solvents.
In order to preserve the environment, used oil and used oil filter must be disposed of only at designated disposal sites.
Drain the engine oil.
Remove the oil filler cap.
Loosen the oil filter cap slowly until its O-ring (C)'s coming out.
Be cautious of oil's overflowing at this moment.
Remove the oil drain plug, and drain the oil into a container.
Replace the oil filter (B).
Remove the oil filter upper cap (A).
Replace the O-ring (C, D) of oil filter cap with a new one.
Inspect the threads and O-ring (C, D). Wipe off the seat on the oil filter cap, then apply a light coat of oil to the oil filter upper cap O-ring (C, D).
Install the new oil filter by hand to the upper cap.
After the rubber seal seats, tighten the oil filter clockwise.
Tightening torque :
31.5 ~ 38.5N.m (3.2 ~ 3.9kgf.m, 23.2 ~ 28.4lb-ft)
Refill with engine oil.
Clean and install the oil drain plug with a new gasket.
Tightening torque :
34.3 ~ 44.1N.m (3.5 ~ 4.5kgf.m, 25.3 ~ 32.5lb-ft)
Fill with fresh engine oil.
Fill half amount of total oil first and then do the rest after 1 minute or more.
Oil Capacity
Total : 5.7 L (1.51 U.S.gal., 6.02 U.S.qt., 5.01 lmp.qt.)
Oil pan : 4.8 L (1.27 U.S.gal., 5.07 U.S.qt., 4.22 lmp.qt.)
Drain and refill including oil filter :
5.3 L (1.40 U.S.gal., 5.60 U.S.qt., 4.66 lmp.qt.)
Install the oil filler cap.
Start engine and check for oil leaks.
Recheck the engine oil level.
Specification :
5W - 30 ACEA B4
In case that ACEA engine oil is not available, engine oli above API CH4 is allowed restrictively.
For best performance and maximum protection of all types of operation, select only those lubricants which :
Satisfy the requirement of the ACEA classification.

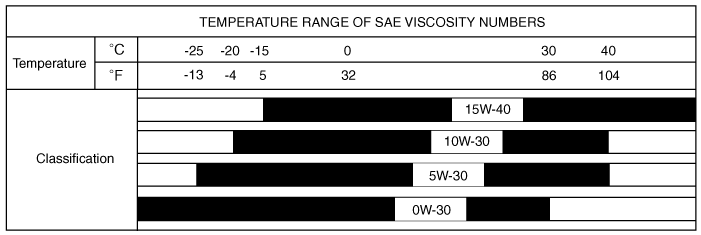

Have proper SAE grade number for expected ambient temperature range.
Lubricants that do not have both an SAE grade number and ACEA service classification on the container should not be used.
The ACEA certified engine oil is required as a service engine oil. Only in case that ACEA certified engine oil is not available, the API certified engine oil (API CH-4 or above) is allowed restrictively.
Check the engine oil quality.
Check the oil deterioration, entry of water, discoloring of thinning.
If the quality is visibly poor, replace the oil.
Check the engine oil level.
After warming up the engine and then 5 minutes after the engine stop, oil level should be between the "L" and "F" marks in the dipstick.
If low, check for leakage and add oil up to the "F" mark.
Do not fill with engine oil above the "F" mark.
