Components

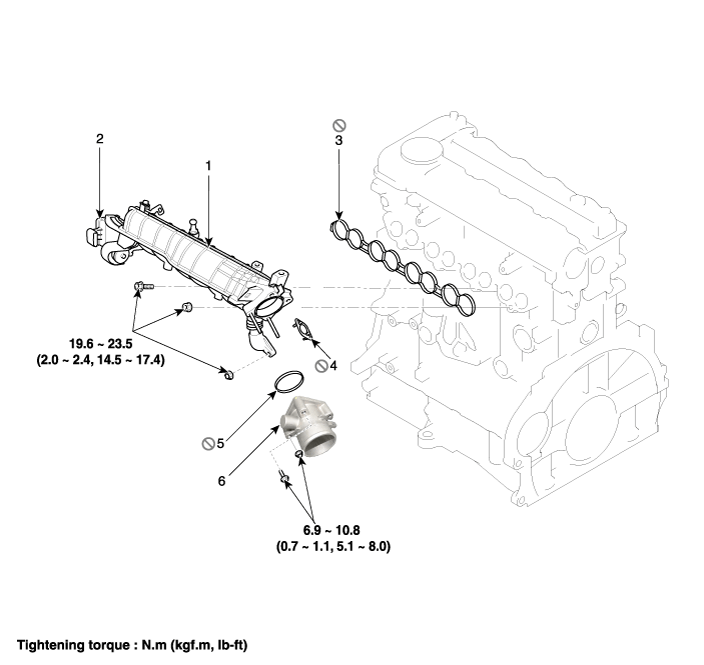

[1.6]

1. Intake manifold assembly

2. Variable swirl control actuator (1.6L only)

3. Intake manifold gasket

4. EGR cooler outlet pipe gasket

5. Throttle body gasket

6. Throttle body

[1.4]

1. Intake manifold assembly

2. Intake manifold gasket

3. Throttle body Gasket

4. Throttle body
