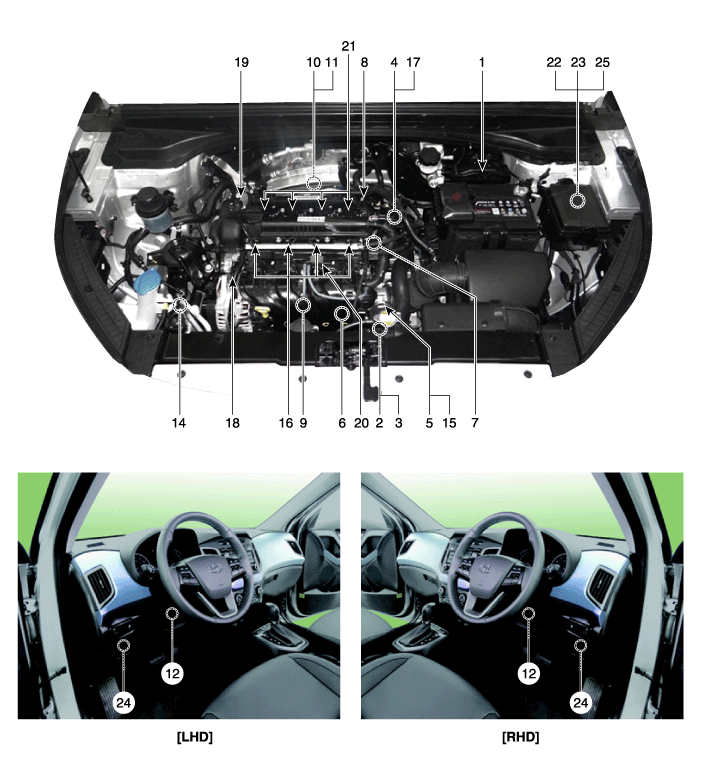

1. ECM (Engine Control Module)
2. Manifold Absolute Pressure Sensor (MAPS)
3. Intake Air Temperature Sensor (IATS)
4. Engine Coolant Temperature Sensor (ECTS)
5. Throttle Position Sensor (TPS) [integrated into ETC Module]
15. ETC Motor [integrated into ETC Module]
6. Crankshaft Position Sensor (CKPS)
7. Camshaft Position Sensor (CMPS) [Bank 1 / Intake]
8. Camshaft Position Sensor (CMPS) [Bank 1 / Exhaust]
9. Knock Sensor (KS)
10. Heated Oxygen Sensor (HO2S) [Bank 1/Sensor 1]
11. Heated Oxygen Sensor (HO2S) [Bank 1/Sensor 2]
12. Accelerator Position Sessor (APS)
14. A/C Pressure Transducer (APT)
16. Injector
21. Ignition Coil
17. Purge Control Solenoid Valve (PCSV)
18. CVVT Oil Control Valve (OCV) [Bank 1 / Intake]
19. CVVT Oil Control Valve (OCV) [Bank 1 / Exhaust]
20. Variable Intake Solenoid (VIS) Valve
22. Main Relay
23. Fuel Pump Relay
24. Multi-Purpose Check Connector [6pin]
24. Data Link Connector (DLC) [16 pin]
