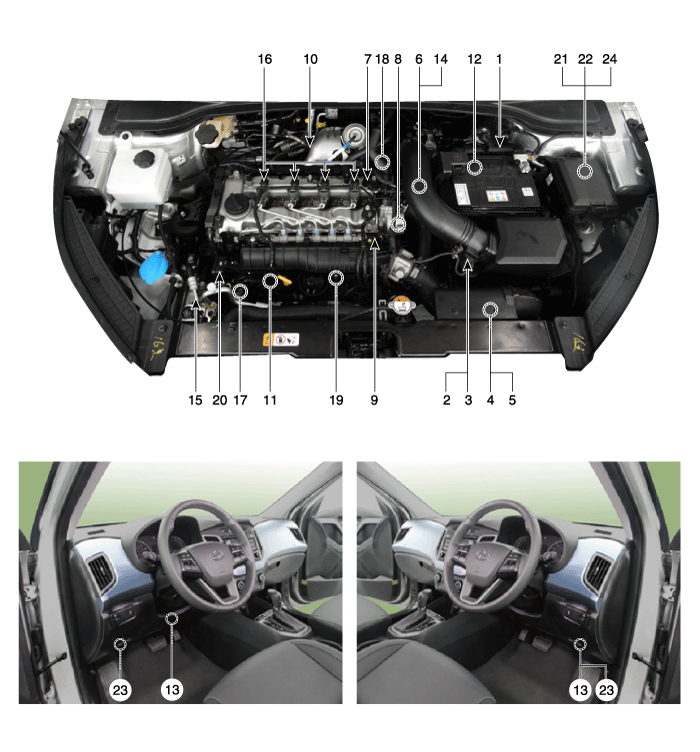

1. ECM (Engine Control Module)
2. Mass Air Flow Sensor (MAFS)
3. Intake Air Temperature Sensor (IATS) #1 built in MAFS
4. Boost Pressure Sensor (BPS)
5. Intake Air Temperature Sensor (IATS) #2 built in BPS
6. Crankshaft Position Sensor (CKPS)
7. Camshaft Position Sensor (CMPS)
18. Electric EGR Control Valve
8. Engine Coolant Temperature Sensor (ECTS)
9. Rail Pressure Sensor (RPS)
10. Lambda Sensor
11. Fuel Temperature Sensor (FTS)
17. Fuel Pressure Regulator Valve
12. Water Sensor (Included in Fuel Filter)
13. Accelerator Pedal Position Sensor (APS)
15. A/C Pressure Transducer (APT)
16. Injector
19. VGT Control Solenoid Valve
20. Variable Swirl Control Actuator (VSA)
21. Main Relay
22. Glow Relay
23. Data Link Connector (DLC) [16-pin]
24. Multi-Purpose Check Connector [6-pin]
