ECM (Engine Control Module)
1. ECM Harness connector
2. ECM Terminal function

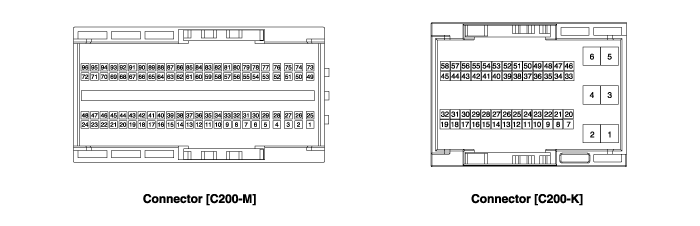

Connector [C200-M]

Pin

Description

Connected to

1

-



2

-



3

Injector (Cylinder #4) [High] control output

Injector (Cylinder #4)

4

Intake Air Temperature Sensor (IATS) #1 signal input

Intake Air Temperature Sensor (IATS) #1 [MAFS]

5

-

6

-

7

-



8

-

9

Engine Coolant Temperature Sensor (ECTS) signal input

Engine Coolant Temperature Sensor (ECTS)

10

Fuel Temperature Sensor (FTS) signal input

Fuel Temperature Sensor (FTS)

11

-



12

-

13

Boost Pressure Sensor (BPS) signal input

Boost Pressure Sensor (BPS)

14

-



15

-

16

-

17

-

18

Wiper motor signal input

Wiper motor

19

Sensor ground

Rail Pressure Sensor (RPS)

20

-

21

-



22

-

23

-

24

-



25

Injector (Cylinder #4) [Low] control output

Injector (Cylinder #4)

26

Injector (Cylinder #1) [Low] control output

Injector (Cylinder #1)

27

Injector (Cylinder #1) [High] control output

Injector (Cylinder #1)

28

Sensor shield

Knock Senor (KS)

29

-



30

Sensor ground

Knock Senor (KS)

31

Knock Senor (KS) signal input

Knock Senor (KS)

32

-



33

-



34

Intake Air Temperature Sensor (IATS) #2 signal input

Intake Air Temperature Sensor (IATS) #2 [BPS]

35

Rail Pressure Sensor (RPS) signal input

Rail Pressure Sensor (RPS)

36

Crankshaft Position Sensor (CKPS) [+] signal input

Crankshaft Position Sensor (CKPS)

37

-



38

Sensor power (+5V)

Rail Pressure Sensor (RPS)

39

-



40

-



41

-

42

Sensor power (+5V)

Boost Pressure Sensor (BPS)

43

-

44

-

45

Sensor ground

Engine Coolant Temperature Sensor (ECTS)

46

Sensor ground

Fuel Temperature Sensor (FTS)

47

Sensor ground

Camshaft Position Sensor (CMPS)

48

-



49

-



50

Injector (Cylinder #2) [High] control output

Injector (Cylinder #2)

51

Injector (Cylinder #3) [High] control output

Injector (Cylinder #3)

52

Neutral Switch signal input

Neutral Switch

53

Reference frequency

Mass Air Flow Sensor (MAFS)

54

-



55

-



56

-



57

-



58

Mass Air Flow Sensor (MAFS) signal input

Mass Air Flow Sensor (MAFS)

59

Camshaft Position Sensor (CMPS) signal input

Camshaft Position Sensor (CMPS)

60

Crankshaft Position Sensor (CKPS) [-] signal input

Crankshaft Position Sensor (CKPS)

61

-



62

-



63

-



64

-

65

-

66

-

67

-

68

Sensor ground

Boost Pressure Sensor (BPS)

69

-



70

-



71

Sensor ground

Mass Air Flow Sensor (MAFS)

72

-

73

-



74

Injector (Cylinder #2) [Low] control output

Injector (Cylinder #4)

75

Injector (Cylinder #3) [Low] control output

Injector (Cylinder #2)

76

-



77

Fuel Pressure Control Valve control output

Fuel Pressure Control Valve

78

-

79

Start Switch Input

Ignition swich

80

-



81

-



82

-



83

-



84

-



85

Glow Relay control output

Glow Relay

86

-



87

Sensor shield

Crankshaft Position Sensor (CKPS)

88

WGT Control Solenoid Valve  control output

WGT Control Solenoid Valve

89

Electric EGR Control Valve control output

Electric EGR Control Valve

90

-



91

-



92

-

93

-

94

-

Blower resister, Blower switch

95

Water Sensor signal input

Water Sensor [Fuel filter]

96

-

Head Lamp

Connector [C200-K]

Pin

Description

Connected to

1

Battery power

Main Relay

2

Power ground

Chassis ground

3

Battery power

Main Relay

4

Power ground

Chassis ground

5

Battery power

Main Relay

6

Power ground

Chassis ground

7

-



8

A/C Pressure Transducer (APT) signal input

A/C Pressure Transducer (APT)

9

-



10

-



11

-



12

-



13

Accelerator Position Sensor (APS) #2 signal input

Accelerator Position Sensor (APS) #2

14

Sensor ground

Accelerator Position Sensor (APS) #2

15

-

16

-

17

Clutch Switch signal input

Clutch Switch

18

-

19

Battery power

Ignition Switch

20

Sensor ground

A/C Pressure Transducer (APT)

21

-



22

Sensor power (+5V)

A/C Pressure Transducer (APT)

23

-



24

Sensor power (+5V)

Accelerator Position Sensor (APS) #1

25

Accelerator Position Sensor (APS) #1 signal input

Accelerator Position Sensor (APS) #1

26

Sensor ground

Accelerator Position Sensor (APS) #1

27

Vehicle Speed Sensor  (VSS) signal input

Vehicle Speed Sensor (VSS)

28

-

29

Sensor power (+5V)

Accelerator Position Sensor (APS) #2

30

Brake [Redundant] switch signal input

Brake switch

31

Immobilizer signal

Immobilizer Control Module

32

Brake [Main] switch signal input

Brake switch

33

-

34

-



35

Engine speed signal output

Tacho meter

36

Starter relay control output

Starter relay

37

Cooling Fan Relay [Low] control output

Cooling Fan Relay [Low]

38

-

39

Ground

Immobilizer Control Module

40

Alternator Regulator Feedback

Alternator

41

-

42

Chip heating

Mass Air Flow Sensor (MAFS)

43

Cooling Fan Relay [High] control output

Cooling Fan Relay [High]

44

-



45

Battery power

Main Relay

46

-

47

C-CAN [Low]

Other control module

48

C-CAN [High]

Other control module

49

Alternator Regulator Output

Alternator

50

-

51

-

52

LIN communication

Battery Sensor

53

-

54

-

55

-

56

-

57

-



58

-

3. ECM Terminal input / Output signal
Connector [C200-M]

Pin

Pin description

Vehicle state

Signal type

Reference level

Test result

1

-









2

-









3

Injector (Cylinder #4) [High] control output

Idle

Pulse

Battery Voltage ~ 75V



4

Intake Air Temperature Sensor (IATS) #1 signal input

Idle

Analog

0.244 ~ 4.760V

2.11V / 33.5degC

5

-

6

-

7

-



8

-

9

Engine Coolant Temperature Sensor (ECTS) signal input

Idle

Analog

0.195 ~ 4.849V

2.72V / 28.5degC

10

Fuel Temperature Sensor (FTS) signal input

Idle

Analog

0.132 ~ 4.995V

3.03V / 24.5degC

11

-









12

-

13

Boost Pressure Sensor (BPS) signal input

Idle

Analog

0.5 ~ 4.5V

1.60V / 1.01Bar

14

-

Ignition ON

DC

0.2273 V +/-0.1V

4.5 V +/-0.1V



15

-

16

-

17

-









18

Wiper motor signal input









19

Sensor ground

Ignition ON

DC

0 ~ 0.3V

0.007V

20

-









21

-









22

-

23

-

24

-









25

Injector (Cylinder #4) [Low] control output

Idle

Pulse

High : Battery Voltage ~ 75V

Low : Max. 1.0V



26

Injector (Cylinder #1) [Low] control output

Idle

Pulse

High : Battery Voltage ~ 75V

Low : Max. 1.0V



27

Injector (Cylinder #1) [High] control output

Idle

Pulse

Battery Voltage ~ 75V



28

Sensor shield

Ignition ON

DC

0 ~ 0.3V

0.007V

29

-









30

Sensor ground

Idle







31

Knock Senor (KS) signal input

Idle







32

-









33

-









34

Intake Air Temperature Sensor (IATS) #2 signal input

Idle

Analog

0.391 ~ 4.907V

3.3V / 25degC

35

Rail Pressure Sensor (RPS) signal input

Idle

Analog

0.5 ~ 4.5V

0.505V / 7bar

36

Crankshaft Position Sensor (CKPS) [+] signal input

Idle

Sine Wave

Vp_p : Min. 1.0V

Max. 360V



37

-









38

Sensor power (+5V)

Ignition ON

DC

4.7 ~ 5.1V

5V

39

-









40

-









41

-

42

Sensor power (+5V)

Ignition ON

DC

4.7 ~ 5.1V

5V

43

-

44

-

45

Sensor ground

Ignition ON

DC

0 ~ 0.3V

0.007V

46

Sensor ground

Ignition ON

DC

0 ~ 0.3V

0.007V

47

Sensor ground

Ignition ON

DC

0 ~ 0.3V

0.007V

48

-









49

-









50

Injector (Cylinder #2) [High] control output

Idle

Pulse

Battery Voltage ~ 75V



51

Injector (Cylinder #3) [High] control output

Idle

Pulse

Battery Voltage ~ 75V



52

Neutral Switch signal input

Neural

Gear engaged

DC

Vbatt

Max 0.3V

10.8V

0.006V

53

Reference frequency

Idle

Pulse

16.7~25Hz

High : Vcc

Low : Max 0.7V

19.08Hz / 52ms

54

-









55

-









56

-









57

-









58

Mass Air Flow Sensor (MAFS) signal input

Idle

Pulse

1.2~14kHz

High : Vcc

Low : Max 0.7V

2273Hz/7.0g/s

59

Camshaft Position Sensor (CMPS) signal input

Idle

Pulse

High : Battery voltage - 0.8V (Max. 24V)

Low : Max. 0.5V



60

Crankshaft Position Sensor (CKPS) [-] signal input

Idle

Sine Wave

Vp_p : Min. 1.0V

Max. 360V



61

-









62

-

Ignition ON

DC

4.7 ~ 5.1V



63

-









64

-

65

-

66

-

67

-

68

Sensor ground

Ignition ON

DC

0 ~ 0.3V

0.007V

69

-

Ignition ON

DC

0 ~ 0.3V



70

-









71

Sensor ground

Ignition ON

DC

0 ~ 0.3V

0.12V

72

-

73

-









74

Injector (Cylinder #2) [Low] control output

Idle

Pulse

High : Battery Voltage ~ 75V

Low : Max. 1.0V



75

Injector (Cylinder #3) [Low] control output

Idle

Pulse

High : Battery Voltage ~ 75V

Low : Max. 1.0V



76

-









77

Fuel Pressure Control Valve (FPCV) control output

Idle

Pulse

Vbatt

Ground : Max. 0.3V

350Hz / 40%

78

ISG OFF switch input



79

Start Switch Input

Key On

 Key Start

DC

Max 0.3V

Vbatt

0.005V

12.8V

80

-









81

-



82

-









83

-

Ignition ON

PWM Positive

Freq. 1000 Hz

Vbatt

Ground



84

-

85

Glow Relay control output

Relay OFF

Relay ON

DC

Vbatt

Max 0.7V

12.12V

0.1V

86

-









87

Sensor shield

Ignition ON

DC

0 ~ 0.3V

0.004V

88

WGT Control Solenoid Valve  control output

Idle

Pulse

Vbatt

Ground : Max. 0.3V

300Hz / 28%

89

Electric EGR Control Valve control output

Idle

Pulse

Vbatt

Ground : Max. 0.3V

140Hz / 10%

90

-









91

-









92

-

93

-

94

-

95

Water Sensor signal input

Water in Fuel

No water

DC

Vbatt

Max 0.3V

-

0.005V

96

-

Connector [C200-K]

Pin

Pin description

Vehicle state

Signal type

Reference level

Test result

1

Battery power

Ignition ON

DC

Vbatt

12.05V

2

Power ground

Ignition ON

DC (Engine)

0 ~ 0.3V

0V

3

Battery power

Ignition ON

DC

Vbatt

12.05V

4

Power ground

Ignition ON

DC (Engine)

0 ~ 0.3V

0V

5

Battery power

Ignition ON

DC

Vbatt

12.05V

6

Power ground

Ignition ON

DC (Engine)

0 ~ 0.3V

0V

7

-









8

A/C Pressure Transducer (APT) signal input

Idle

Analog

0.5 ~ 4.5V

1.23 V / 5.75bar

9

-









10

-









11

-









12

-









13

Accelerator Position Sensor (APS) #2 signal input

C.T

W.O.T

Analog

0.7 ~ 0.85V

3.95 ~ 4.25V

0.737V

4.04V

14

Sensor ground

Ignition ON

DC

0 ~ 0.3V

0.009V

15

-



16

-

17

Clutch Bottom Switch signal input

Push

Release

DC

Max 1.5V

Vbatt

-

11.16V

18

-

19

Battery power

Key OFF

Key ON

DC

Max 2V

Vbatt

0.23V

12.02V

20

Sensor ground

Ignition ON

DC

0 ~ 0.3V

0.008V

21

-









22

Sensor power (+5V)

Ignition ON

DC

4.7 ~ 5.1V

5V

23

-









24

Sensor power (+5V)

Ignition ON

DC

4.7 ~ 5.1V

5V

25

Accelerator Position Sensor (APS) #1 signal input

C.T

W.O.T

Analog

0.7 ~ 0.85V

3.95 ~ 4.25V

0.737V

4.04V

26

Sensor ground

Ignition ON

DC

0 ~ 0.3 V

0.009V

27

Vehicle Speed Sensor  (VSS) signal input

Vehicle Run

Pulse

High: Vcc

Low: Max 0.5V



28

-

29

Sensor power (+5V)

Ignition ON

DC

4.7 ~ 5.1V

5V

30

Brake [Redundant] switch signal input

Push

Release

DC

Max 1.5V

Vbatt

0.005V

12.2V

31

Immobilizer signal

Ignition ON





OK

32

Brake [Main] switch signal input

Push

Release

DC

Vbatt

Max 1.5V

11.62V

0.005V

33

-



34

-









35

Engine speed signal output

Idle

Pulse

1 rpm = 0.0666Hz

High : Min Vbatt - 1.23V

Low : Max 1.1V

54.35Hz / 849rpm

36

Starter relay control output

Relay OFF

Relay ON

DC

Vbatt

Max 1.5V

12V

0.002V

37

Cooling Fan Relay [Low] control output

Relay OFF

Relay ON

DC

Vbatt

Max 0.7V

12V

0.018V

38

-

39

Ground

Ignition ON

DC

0 ~ 0.3V

0V

40

Alternator Regulator Feedback

Idle

Pulse

High : Min 3V

Low : Max 1.5V



41

-

42

Chip heating









43

Cooling Fan Relay [High] control output

Relay OFF

Relay ON

DC

Vbatt

Max 0.7V

12V

0.02V

44

-









45

Battery power

Relay OFF

Relay ON

DC

Max 1.2V

Vbatt

0.9V

12V

46

-



47

C-CAN [Low]

RECESSIVE

DOMINANT

Pulse

2.0 ~ 3.0V

0.5 ∼ 2.25V



48

C-CAN [High]

RECESSIVE

DOMINANT

Pulse

2.0 ~ 3.0V

2.75 ∼ 4.5V



49

Alternator Regulator Output

Idle

Pulse

High : Min 4V

Low : Max 2V



50

-









51

-

52

LIN communication (K-Line)

Ignition ON





OK

53

-









54

-









55

-

56

-

57

-









58

-

Circuit Diagram
Яндекс.Метрика
