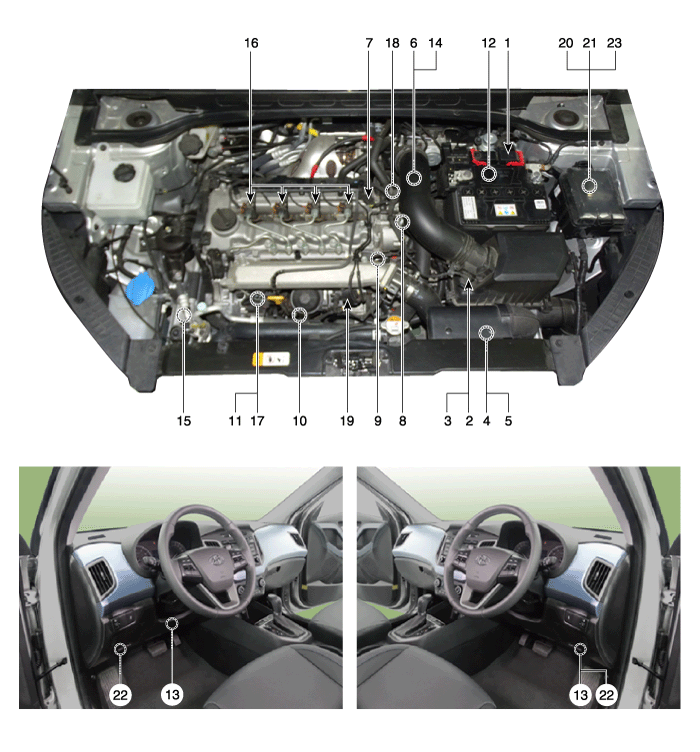

1. ECM (Engine Control Module)
2. Mass Air Flow Sensor (MAFS)
3. Intake Air Temperature Sensor (IATS) #1 built in MAFS
4. Boost Pressure Sensor (BPS)
5. Intake Air Temperature Sensor (IATS) #2 built in BPS
6. Crankshaft Position Sensor (CKPS)
14. Vehicle Speed Sensor (VSS)
7. Camshaft Position Sensor (CMPS)
18. Electric EGR Control Valve
8. Engine Coolant Temperature Sensor (ECTS)
9. Rail Pressure Sensor (RPS)
16. Injector
10. Knock sensor (KS)
11. Fuel Temperature Sensor (FTS)
17. Fuel Pressure Control Valve (FPCV)
12. Water Sensor (included in Fuel Filter)
13. Accelerator Pedal Position Sensor (APS)
15. A/C Pressure Transducer (APT)
19. WGT Control Solenoid Valve
20. Main Relay
21. Glow Relay
22. Data Link Connector (DLC) [16-pin]
23. Multi-Purpose Check Connector [6-pin]
