3.
If measured value exceeds the standard value, replace the wheel.
Tighten the hub nuts as follows.
Tightening torque (Front) :
88.25 ~ 107.9 N.m (9.0 ~ 11.0 kgf.m, 65.1 ~ 79.6 lb-ft)
Tightening torque (Rear) :
88.3 ~ 107.9 N.m (9.0 ~ 11.0 kgf.m, 65.1 ~ 79.6 lb-ft)
When using an impact gun, final tightening torque should be checked using a torque wrench.
Jack up the vehicle.

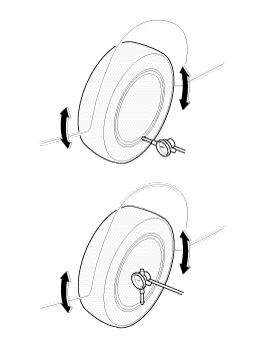

Measure the wheel Run-out by using a dial indicator as illustration below.
Run-out | Aluminum | Steel |
Radial mm(in.) | Below 0.3(0.012) | Below 1.0(0.039) |
Axial mm(in.) | Below 0.3(0.012) | Below 0.6(0.024) |
If measured value exceeds the standard value, replace the wheel.
