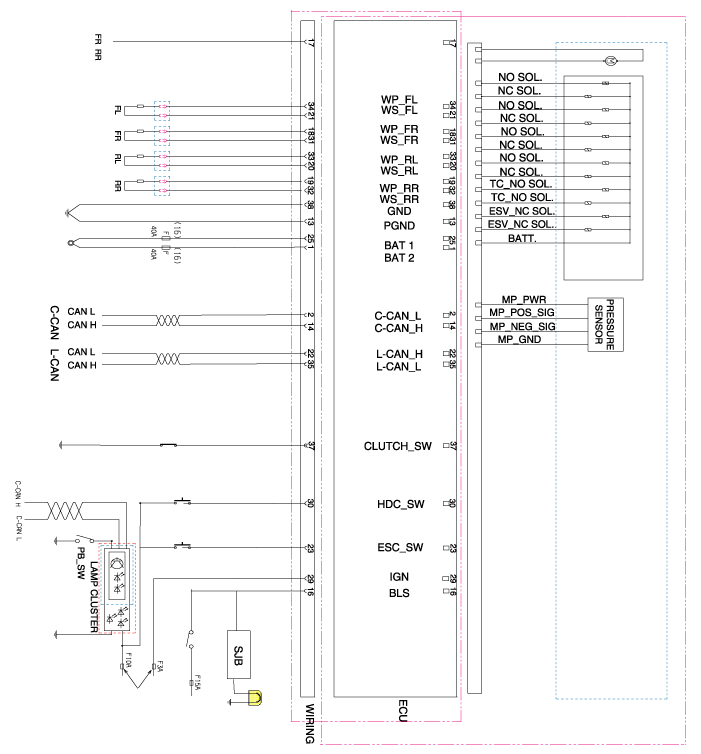

Wire No. | Designation | Current12V(AMPS) | max.permissible wire resistance (OHMS) |
13 | Ground for recirculation pump | 137(Rush) | 10 m |
38 | Ground for solenoid valves and ECU | 40 | 10m |
1 | Voltage supply for pump motor | 137(Rush) | 10 m |
25 | Voltage supply for solenoid valves | 40 | 10m |
29 | IGNITION1(+) | 50m | 60m |
21,31,20,32 | Active wheel signal wheel speed sensor FL, FR, RL,RR signal | 16.8m | 250m |
34,18,33,19 | Voltage supply for the active wheel speed sensor FL,FR, RL, RR | 30m | 250 m |
16 | Brake light switch (Signal) | 10m | 250m |
14 | Chassis CAN High | 30m | 250 m |
17 | Wheel speed sensor output | 16m | 250m |
2 | Chassis CAN Low | 30m | 250 m |
23 | ESP ON/OFF switch | 10m | 250 m |
30 | HDC ON/OFF switch | 10m | 250 m |
22 | Local CAN High | 30m | 250 m |
35 | Local CAN Low | 30m | 250m |
35 | Clutch switch | 10m | 250m |
