09200-3N000

Engine support fixture (Beam)

Removal and installation of the transmission.

Use this beam (SST No. : 09200-3N000) with the supporter (SST No. : 09200-2S000).

※Permit operating with 09200-38001.

※Refer to the engine support fixture assembly drawing below.

A: 09200-2S000

B: 09200-2S100

C: 09200-2S200

Engine support fixture (Supporter)

Removal and installation of the transmission.

Use this beam (SST No. : 09200-38001/3N000) with the supporter (SST No. : 09200-2S000).

※Refer to the engine support fixture assembly drawing below.

09431-26100

Oil seal installer

Installation of transaxle case oil seal.

[Using with handle (SST No.:09231-H1100)]

09231-H1100

Bar

Installation of transaxle case oil seal.

[Using with oil seal installer (SST No.:09452-26100)]

1. 09200-3N000(Main bar)

2. 09200-3N000(Sub bar)

3. 09200-3N000(Handle)

4. 09200-3N000(Stopper)

5. 09200-3N000(Stopper)

6. 09200-3N000(Knobe)

7. 09200-3N000(Adapter)

8. 09200-2S000(Supporter)

9. 09200-3N000(Hanger)

10. 09200-3N000(Clip)

11. 09200-3N000(Nut)

12. 09200-3N000(Pin)

13. 09200-2S000(Stopper)

14. 09200-2S000(Spacer)

15. 09200-2S000(Adapter)

16. 09200-2S000(Supporte)

17. 09200-2S000(Nut)

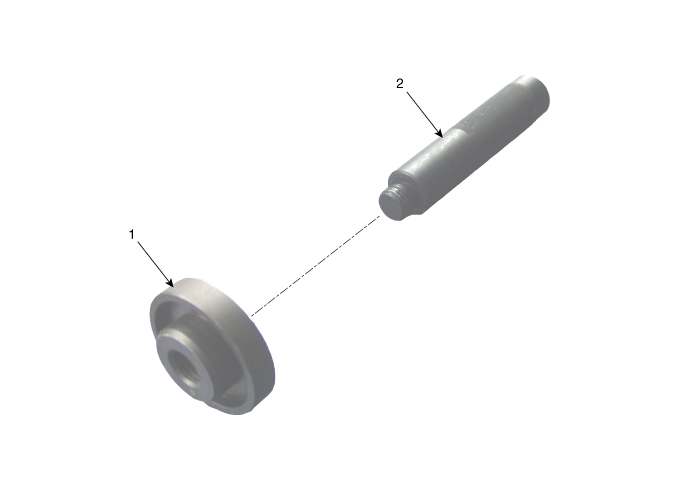

1. 09431-26100 (Oil seal installer)

2. 09231-H1100 (Bar)
