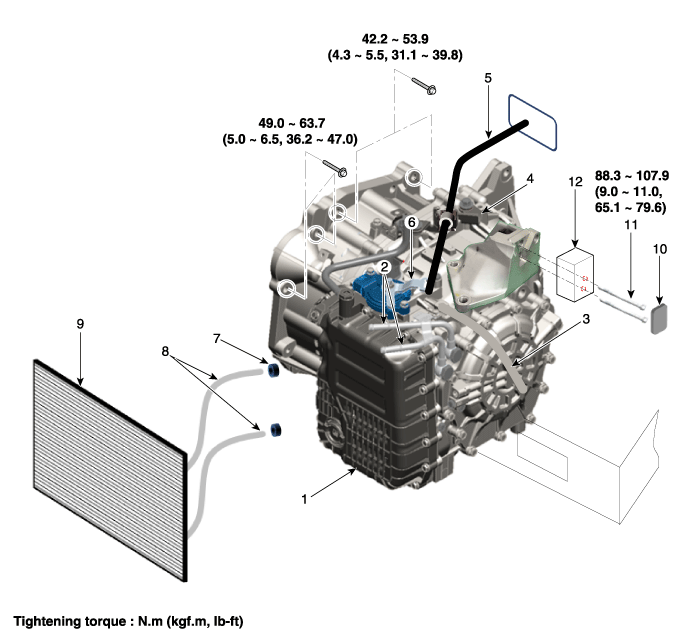

Components Location (1)

1. Automatic transaxle assembly

2. ATF cooler tube

3. Ground line

4. Shift cable mounting bracket

5. Shift cable

6. Inhibitor switch & manual control lever

7. Clamp

8. ATF cooler hose

9. ATF Cooler & radiator

10. Mounting bracket cover

11. Support bracket mounting bolt

12. Automatic mounting bracket

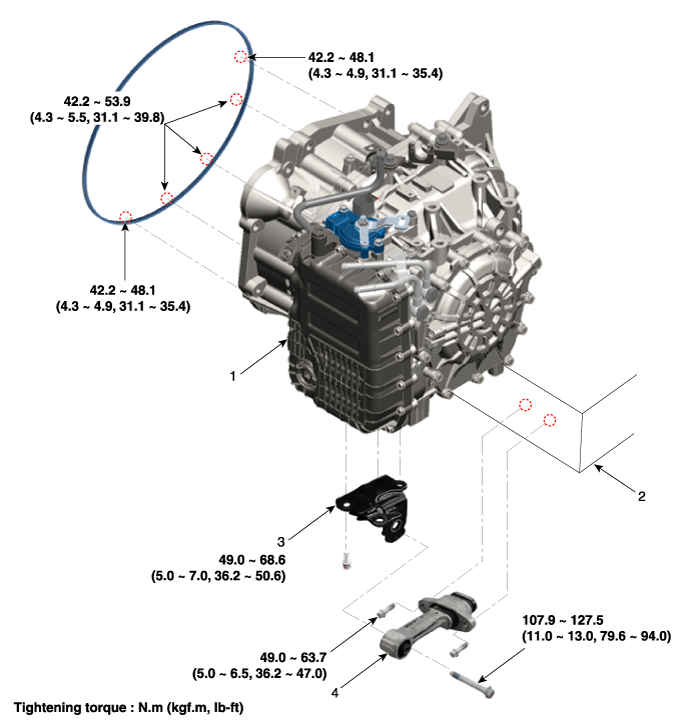

Components Location (2)

1. Automatic transaxle assembly

2. Subframe assembly

3. Roll rod support bracket

4. Roll rod bracket
