Tools
(Number and name)
Illustration
Use
09200-3N000
Engine support fixture (Beam)
Removal and installation of the transaxle.
Use this beam (SST No.: 09200-3N000) with the supporter (SST No.: 09200-2S000).
※Permit operating with 09200-38001.

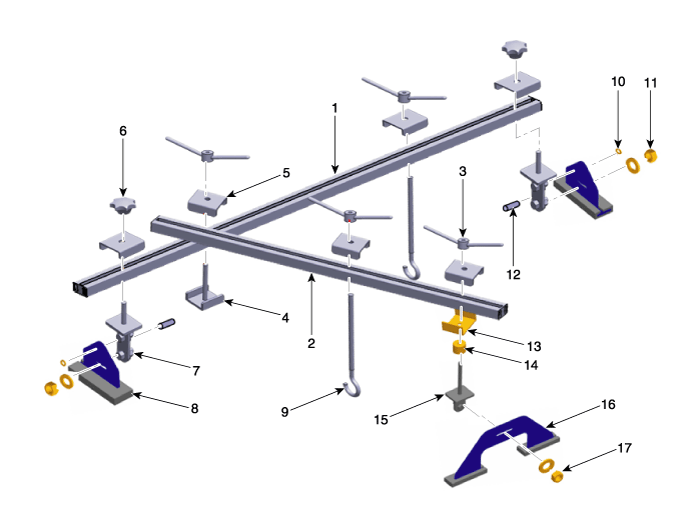

※Refer to the engine support fixture assembly drawing below.
09200-2S000
Engine support fixture (Supporter)
Removal and installation of the transaxle.
Use this supporter (SST No.: 09200-2S000) with the beam (SST No.: 09200-38001/3N000)).
※Refer to the engine support fixture assembly drawing below.
09453-3L241
Oil seal installer
Installation of the differential oil seal in the transaxle case and housing side.
[Using with bar (SST No.: 09231-H1100)]
09231-H1100
Bar
Installation of the differential oil seal in the transaxle case and housing side.
[Using with oil seal installer (SST No.: 09453-3L241)]
09480-A3800
Inhibitor switch neutral fixed pin
Used to align the neutral position when installing the manual control lever on the inhibitor switch.
