Description
●

The oil pump is powered by the engine. ATF passes through the oil filter and gets distributed along the oil channels.

●

The oil becomes highly pressurized as it exits the oil pump and passes through the line pressure valve before being fed to the clutch & brake control valve, clutch, and brakes.

●

TCM controls the hydraulic pressure using solenoid valves and controls clutch and brake operations.

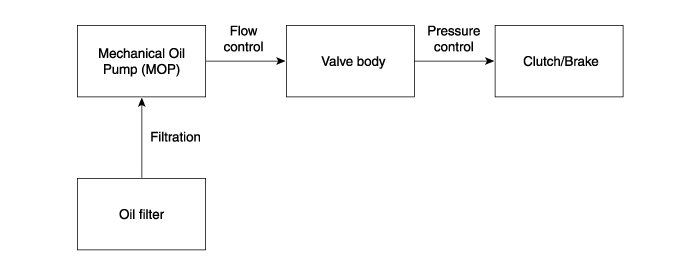

Flow of the hydraulic system
