The valve body is essential to automatic transaxle control and consists of various valves used to control the oil feed from the oil pump. Specifically, these valves consist of pressure regulator valves, oil redirection valves, shift valves, and manual valves.
The body also features electronic solenoid valves that ensure smooth gear changes.

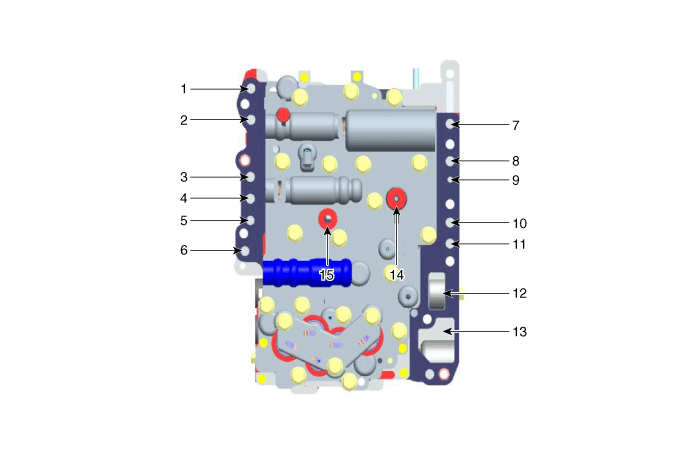

1. To cooler 2. From cooler 3. Lubrication (Rear) 4. OD Clutch pressure 5. Reducing pressure (Red2) 6. Reducing pressure (Red1) 7. Damper release pressure 8. Damper apply pressure | 9. Lubrication (Front) 10. 35R Clutch pressure 11. 26 Brake pressure 12. From oil pump 13. To oil pump 14. Underdrive (UD) Brake pressure 15. Low & reverse pressure |
