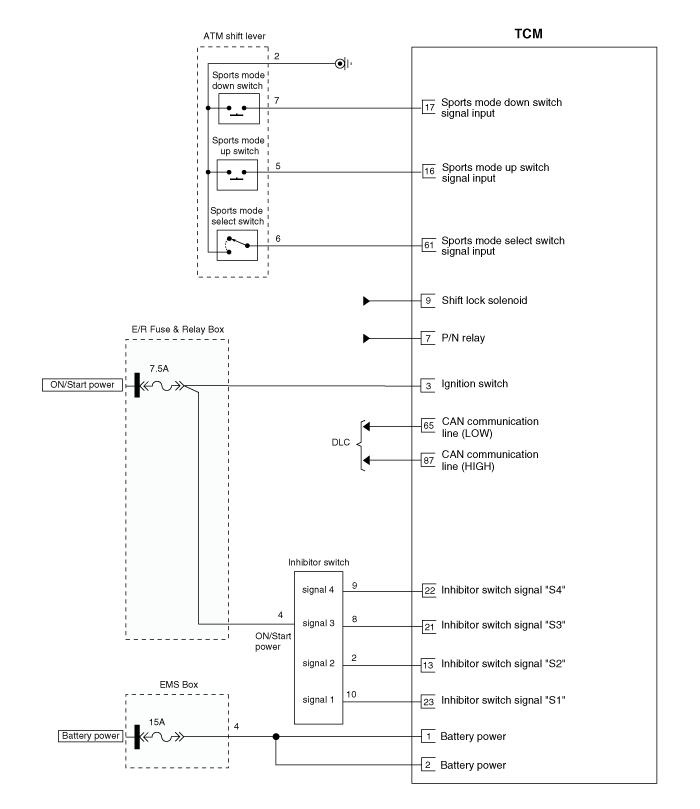

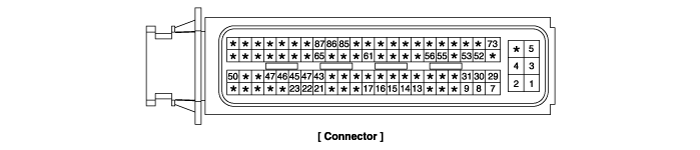

Pin | Description | Pin | Description |
1 | Battery power | 48 | ㅡ |
2 | Battery power | 49 | ㅡ |
3 | Ignition switch | 50 | 26 brake control solenoid valve (26/B_VFS) |
4 | Power ground | 51 | ㅡ |
5 | Power ground | 52 | SS-A Solenoid valve (ON/OFF) |
6 | ㅡ | 53 | Reverse lamp relay |
7 | P/N relay | 54 | ㅡ |
8 | SS-B Solenoid valve (ON/OFF) | 55 | Input speed sensor signal |
9 | Shift lock solenoid | 56 | Output speed sensor signal |
10 | ㅡ | 57 | ㅡ |
11 | ㅡ | 58 | ㅡ |
12 | ㅡ | 59 | ㅡ |
13 | Inhibitor switch signal "S2" | 60 | ㅡ |
14 | Oil temperature sensor (+) | 61 | Sports mode select switch |
15 | Oil temperature sensor (-) | 62 | ㅡ |
16 | Sports mode up switch | 63 | ㅡ |
17 | Sports mode down switch | 64 | ㅡ |
18 | ㅡ | 65 | CAN communication line (LOW) |
19 | ㅡ | 66 | ㅡ |
20 | ㅡ | 67 | ㅡ |
21 | Inhibitor switch signal "S3" | 68 | ㅡ |
22 | Inhibitor switch signal "S4" | 69 | ㅡ |
23 | Inhibitor switch signal "S1" | 70 | ㅡ |
24 | ㅡ | 71 | ㅡ |
25 | ㅡ | 72 | ㅡ |
26 | ㅡ | 73 | Solenoid power 2 |
27 | ㅡ | 74 | ㅡ |
28 | ㅡ | 75 | ㅡ |
29 | Solenoid power 1 | 76 | ㅡ |
30 | Output speed sensor power | 77 | ㅡ |
31 | Input speed sensor power | 78 | ㅡ |
32 | ㅡ | 79 | ㅡ |
33 | ㅡ | 80 | ㅡ |
34 | ㅡ | 81 | ㅡ |
35 | ㅡ | 82 | ㅡ |
36 | ㅡ | 83 | ㅡ |
37 | ㅡ | 84 | ㅡ |
38 | ㅡ | 85 | ㅡ |
39 | ㅡ | 86 | ㅡ |
40 | ㅡ | 87 | CAN communication line (HIGH) |
41 | ㅡ | 88 | ㅡ |
42 | ㅡ | 89 | ㅡ |
43 | Torque converter control solenoid valve (VFS) | 90 | ㅡ |
44 | Overdrive clutch control solenoid valve (VFS) | 91 | ㅡ |
45 | 35R Clutch control solenoid valve (VFS) | 92 | ㅡ |
46 | Line pressure control solenoid valve (VFS) | 93 | ㅡ |
47 | Underdrive brake control solenoid valve (VFS) | 94 | ㅡ |

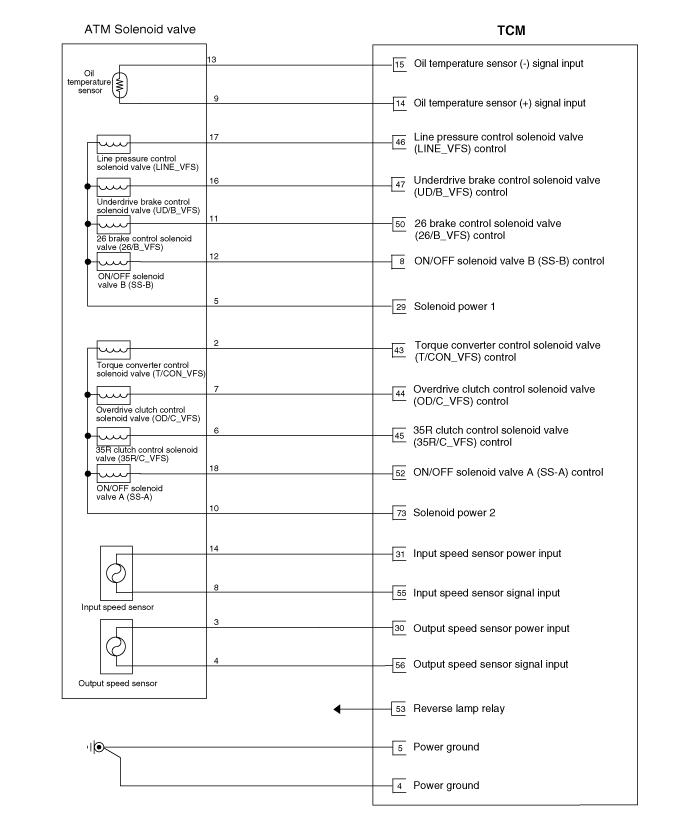

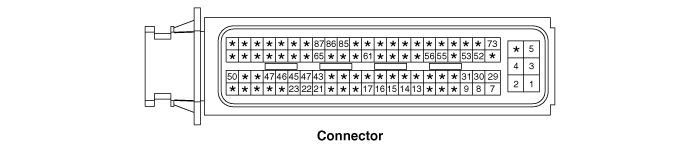

Pin | Description | Condition | Inoutput value | |
Type | Level | |||
23 | Inhibitor switch 1 | ON | Digital | 9V < Battery voltage level < 16V |
OFF | 0V/Battery voltage level | |||
13 | Inhibitor switch 2 | ON | 9V < Battery voltage level < 16V | |
OFF | 0V/Battery voltage level | |||
21 | Inhibitor switch 3 | ON | 9V < Battery voltage level < 16V | |
OFF | 0V/Battery voltage level | |||
22 | Inhibitor switch 4 | ON | 9V < Battery voltage level < 16V | |
OFF | 0V/Battery voltage level | |||
14 | Oil temperature sensor signal (+) | - | Analog | Min.: 0V |
15 | Oil temperature sensor signal (-) | - | Max.: 5.1V | |
61 | Sports mode select switch | ON | Digital | Max. Low level threshold value ≤ 2.0V |
16 | Sports mode up switch | OFF | Min. High level threshold value ≥ 4.0V | |
17 | Sports mode down switch | OFF |
| |
56 | Output speed sensor signal | Revolution | Pulse | Max. frequency : 9 kHz |
Min. frequency: > 0 Hz | ||||
55 | Input speed sensor signal | Revolution | Min. High Pulse: ≥ 25 µs | |
Min. Low Pulse: ≥ 25 µs | ||||
7 | P/N relay | P-R change | Output | Min. Operation voltage: Battery voltage ≥ 6.0V |
Max. Operation voltage: Battery voltage ≤ 16.0V | ||||
P/N range position | ||||
9 | Shift lock solenoid | ON/OFF | Output | Max. current: 1A |
Output current: 1,0A | ||||
29 | Solenoid power 1 | - | Output |
|
46 | Line pressure control solenoid valve | Variable duty | VFS | Max. Output current (TCM): 850 mA |
(VFS) | ||||
47 | Underdrive brake control solenoid valve (VFS) | Variable duty | Min. Output current (TCM): 50 mA | |
50 | 26 Brake control solenoid valve | Variable duty |
| |
(VFS) | ||||
73 | Solenoid power 2 | - | Output |
|
43 | Torque converter control solenoid valve (VFS) | Variable duty | VFS | Max. Output current (TCM): 850 mA |
44 | Overdrive clutch control solenoid valve | Variable duty | Min. Output current (TCM): 50 mA | |
(VFS) | ||||
45 | 35R Clutch control solenoid valve | Variable duty |
| |
(VFS) | ||||
52 | SS-A Solenoid valve (ON/OFF) | ON/OFF | PWM | Output current : 0.7A |
8 | SS-B Solenoid valve (ON/OFF) | ON/OFF | ||
53 | Reverse lamp relay | ON | Output | Max. Operation current: 0.3A |
Max. Voltage drop: 0.14V | ||||
