Using the GDS, check the input/output speed sensor waveforms.
Turn the ignition key OFF.
Connect the GDS to the Data Link Connector (DLC) on the lower crash pad.
Turn the ignition key ON and the engine ON.
Check the input/output speed sensor waveforms at high speed and low speed.

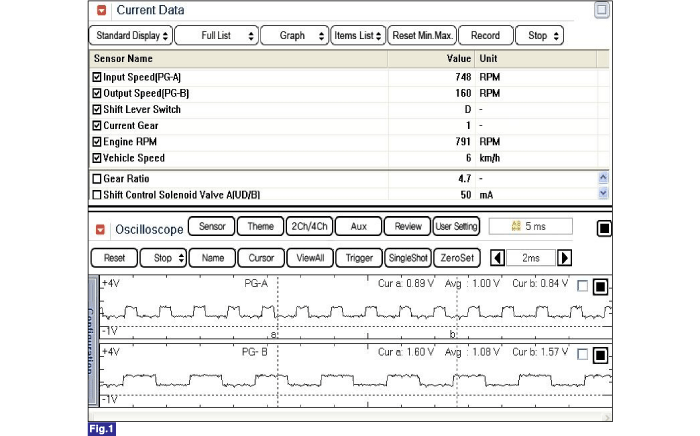

Fig 1) Input/Output speed sensor at low speed

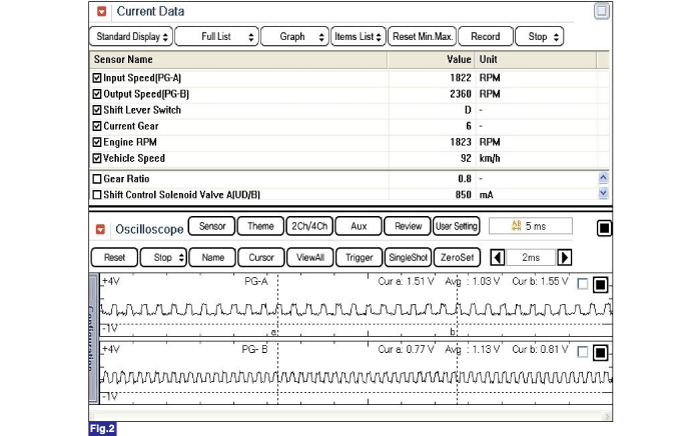

Fig 2) Input/Output speed sensor at high speed
Remove the valve body assembly.
(Refer to Valve body System - "Valve Body")
Disconnect the input & output speed sensor connector (A) from the main wiring.
Remove the input & output speed sensor (B) after removing the bolts (2ea).
Tightening torque :
9.8 ~ 11.8 N.m (1.0 ~ 1.2 kgf.m, 7.2 ~ 8.7 lb-ft)
To install, reverse the removal procedure.
Check fluid level after filling the automatic transaxle with fluid.
(Refer to Hydraulic System - "Fluid")
