Components Location (1)

1. Automatic transaxle

2. Output speed sensor

3. Input speed sensor

4. Solenoid valve connector

5. Oil temperature sensor

6. Solenoid valve mounting bracket

7. Valve body cover

8. Valve body assembly

9. Inhibitor switch

10. Manual control lever

11. Shift cable

12. Shift lever

13. Shift cable retainer

14. O-Ring

Components Location (2)

1. Valve body assembly

2. Torque Converter Control Solenoid Valve (T/CON)

3. 35R Clutch Control Solenoid Valve (35R/C)

4. 26 Brake Control Solenoid Valve (26/B)

5. Underdrive Brake Control Solenoid Valve (UD/B)

6. Overdrive Clutch Control Solenoid Valve (OD/C)

7. SS-B Solenoid Valve (ON/OFF)

8. SS-A Solenoid Valve (ON/OFF)

9. Line Pressure Control Solenoid Valve

10. Solenoid valve mounting bracket

11. Valve body cover gasket

12. Valve body cover

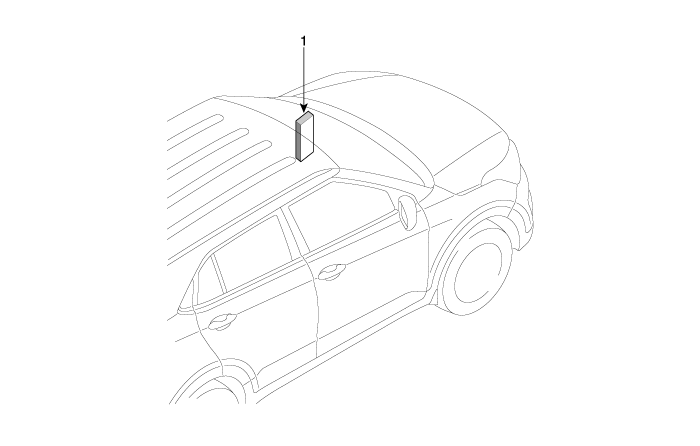

Components Location (3)

1. Transaxle Control Module (TCM)
