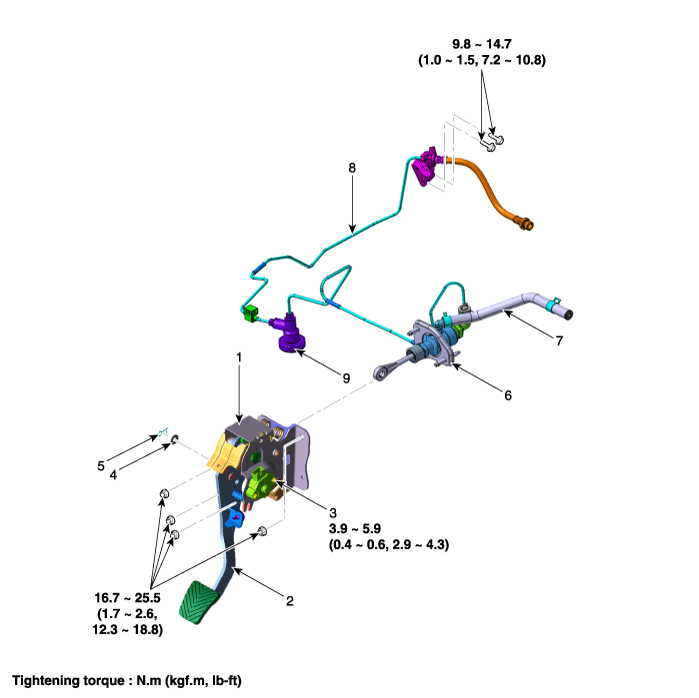

1. Clutch pedal assembly 2. Clutch pedal arm 3. Ignition lock & clutch switch 4. Washer 5. Snap pin | 6. Master cylinder 7. Reservoir hose 8. Clutch tube 9. Regulator |

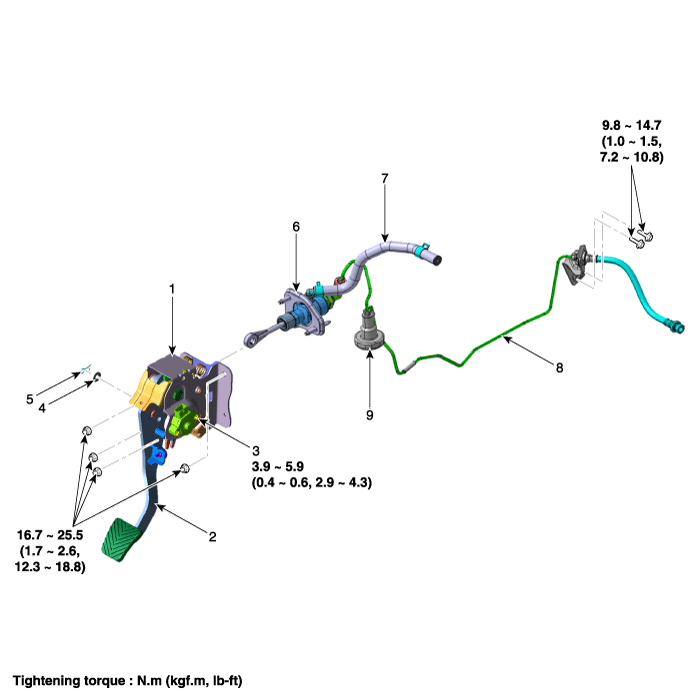

1. Clutch pedal assembly 2. Clutch pedal arm 3. Ignition lock & clutch switch 4. Washer 5. Snap pin | 6. Master cylinder 7. Reservoir hose 8. Clutch tube 9. Regulator |
