Components

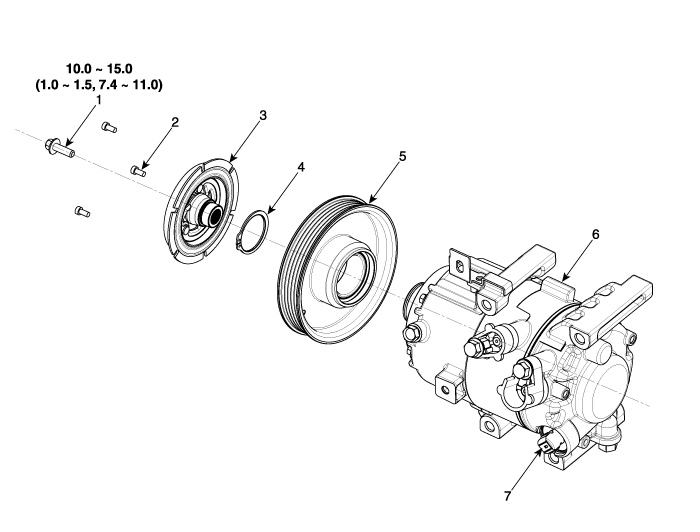

[Gamma Engine]

1. Clutch Bolt

2. Limiter Bolt

3. Limiter & Hub Assembly

4. Snap Ring

5. Pulley

6. Compressor Assembly

7. Electric Control Valve (ECV)

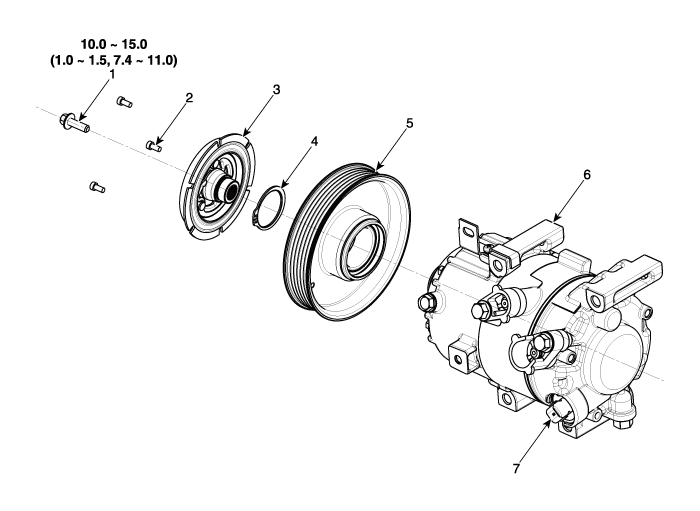

[U2 Engine]

1. Clutch Bolt

2. Limiter Bolt

3. Limiter & Hub Assembly

4. Snap Ring

5. Pulley

6. Compressor Assembly

7. Electric Control Valve (ECV)

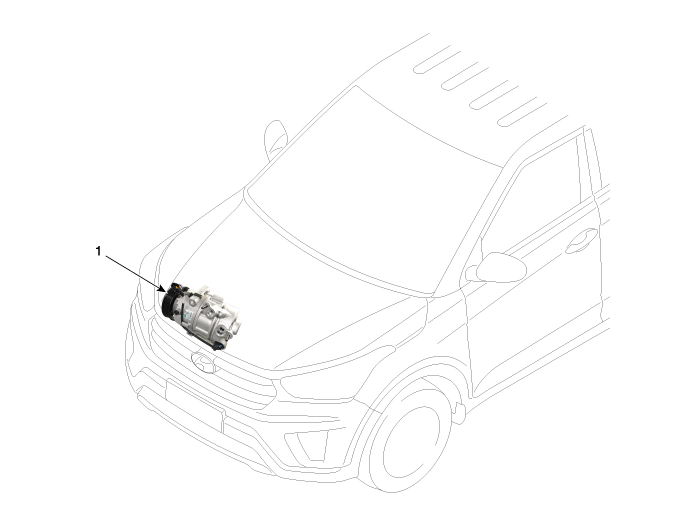

Components Location

1. Comperssor
