Component Location

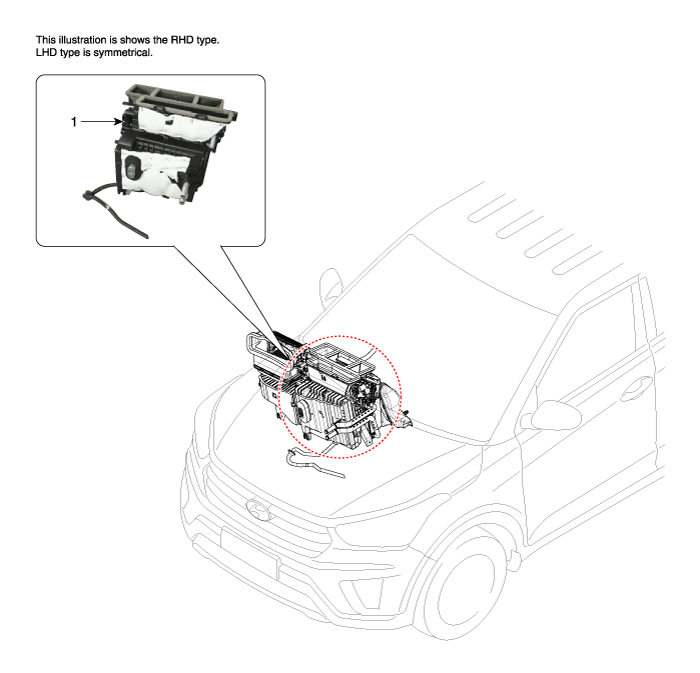

1. Heater unit assembly

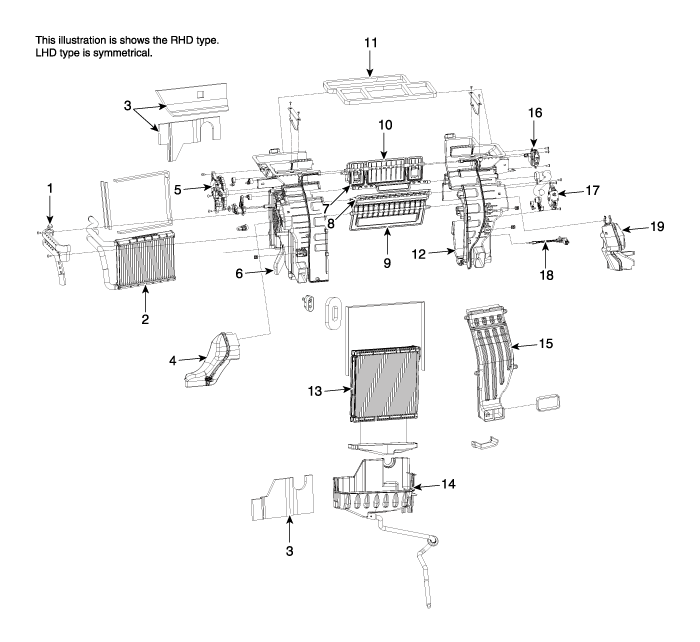

Compoents (1)

1. Heater core cover

2. Heater core & Seal assembly

3. Heater unit pad

4. Shower duct [LH]

5. Mode actuator

6. Heater case [LH]

7. Vent door assembly

8. Floor door assembly

9. Temperature door assembly

10. DEF door assembly

11. Center duct seal

12. Heater case [RH]

13. Evaporator Core Assembly

14. Heater lower cover

15. Console duct cover

16. Auto defogging actuator

17. Temperature actuator motor assembly

18. Evaporator temperature sensor

19. Shower duct [RH]
