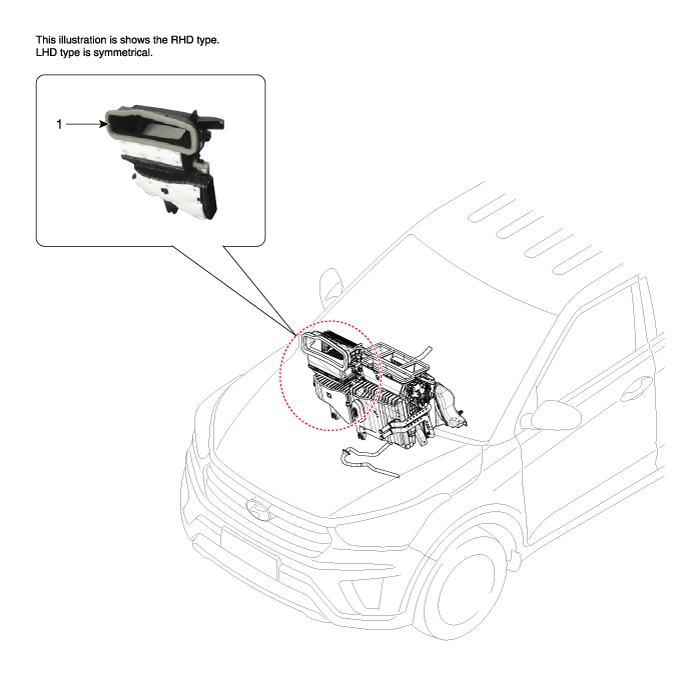

Component Location

1. Blower unit assembly

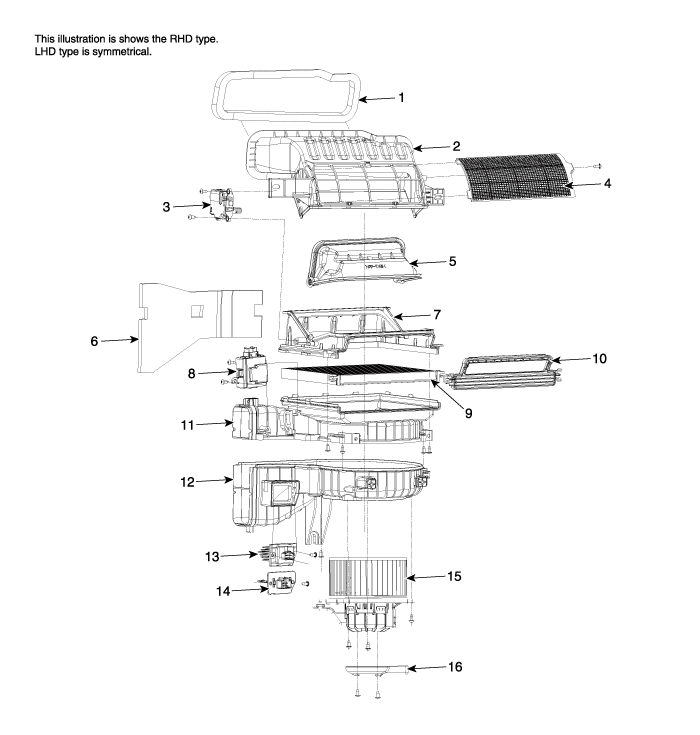

Components

1. Inlet Seal

2. Intake duct case

3. Intake actuator

4. Intake upper case

5. Intake door

6. Blower unit pad

7. Intake lower case

8. Cluster ionizer

9. Air filter

10. Filter cover assembly

11. Blower upper cover

12. Blower lower case

13. Power mosfet

14. Resistor assembly

15. Blower motor

16. Blower lowr case
