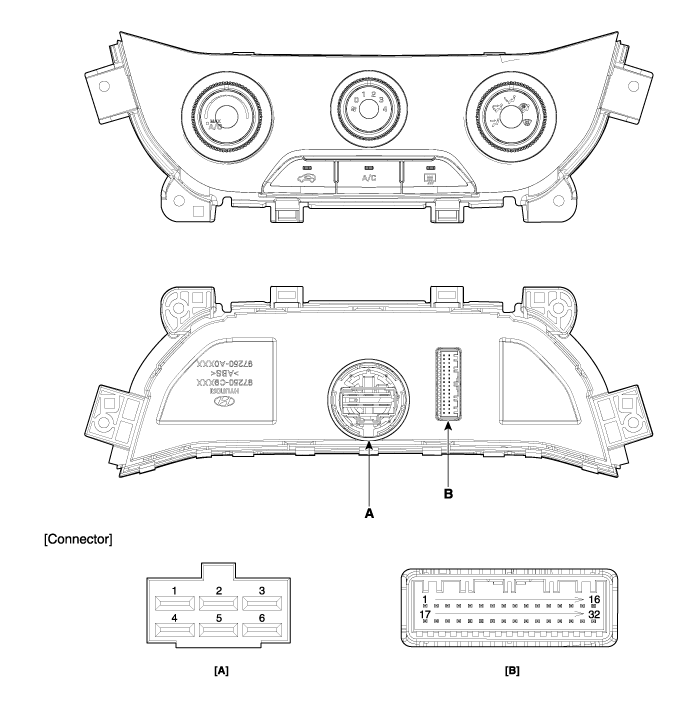

Pin NO | Function | Pin NO | Function |
1 | Low | 4 | Middle Low |
2 | Common | 5 | Middle High |
3 | Ground | 6 | High |
Pin NO | Function | Pin NO | Function |
1 | Battery (+) | 21 | - |
2 | IGN2 | 22 | C_CAN High |
3 | - | 23 | C_CAN Low |
4 | MAX Blower ON Signal | 24 | - |
5 | Sensor REF (+5V) | 25 | EVAP Sensor (+) |
6 | Mode actuator (Vent) | 26 | AMB Sensor (+) |
7 | Mode actuator (Defrost) | 27 | Rear defog switch |
8 | Temperature actuator (Cool) | 28 | Blower ON signal to common |
9 | Temperature actuator (Warm) | 29 | ECV + |
10 | Intake actuator (Fresh Air) | 30 | ECV- (Ground) |
11 | Intake actuator (Recirculated Air) | 31 | Sensor ground |
12 | Mode actuator feedback | 32 | Ground |
13 | Temperature actuator feedback | ||
14 | Intake actuator feedback | ||
15 | ILL- (RHEO) | ||
16 | Ground | ||
17 | IGN1 | ||
18 | ILL+ (TAIL) | ||
19 | Detent OUT (-) | ||
20 | HTD (Rear defog indicator) |
