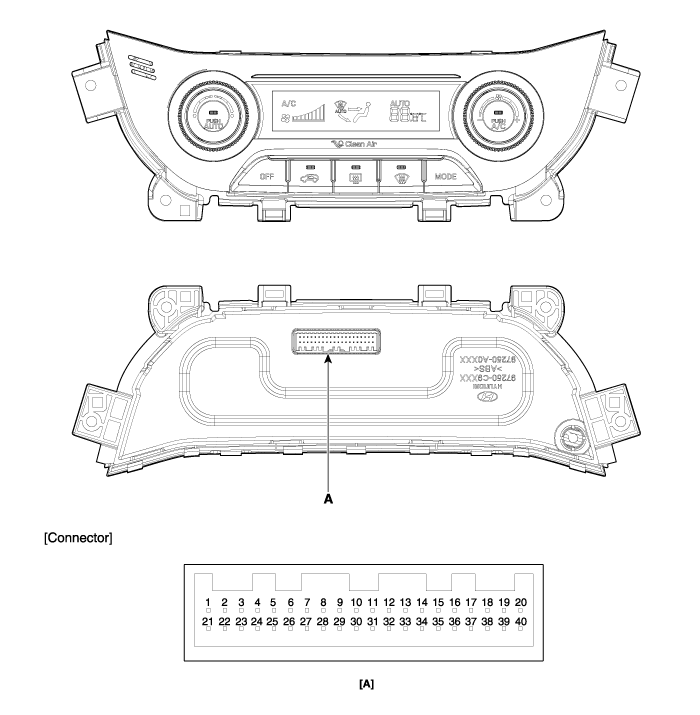

Pin NO | Function | Pin NO | Function |
1 | Battery (+) | 21 | IGN1 |
2 | IGN2 | 22 | ILL+ (TAIL) |
3 | Detent Out (-) | 23 | EVAP Sensor (+) |
4 | Sensor REF (+5V) | 24 | AMB Sensor (+) |
5 | Mode actuator feedback | 25 | - |
6 | Mode actuator (Vent) | 26 | Photo sensor (-) |
7 | Mode actuator (Defrost) | 27 | Blower motor (+) |
8 | Temperature actuator feedback | 28 | Power mosfet (Gate) |
9 | Temperature actuator (Cool) | 29 | Power mosfet (Drain feed back) |
10 | Temperature actuator (Warm) | 30 | HTD (Rear defog indicator) |
11 | Intake actuator feedback | 31 | Rear defog switch |
12 | Intake actuator (Fresh Air) | 32 | ADS Signal |
13 | Intake actuator (Recirculated Air) | 33 | - |
14 | Defogging actuator feedback | 34 | C_CAN High |
15 | Defogging actuator (Open) | 35 | C_CAN Low |
16 | Defogging actuator (Close) | 36 | ECV + |
17 | - | 37 | ECV- (Ground) |
18 | Cleean signal | 38 | ILL- (RHEO) |
19 | Ionizer diagnosis | 39 | Sensor ground |
20 | Ground | 40 | Ground |
