4.
Remove the front door belt inside weatherstrip (A).
Remove the front door trim.
(Refer to Front Door - "Front Door Trim")
After loosening the mounting screws, then remove the front door trim seal mounting bracket.
Remove the front door trim seal.
Replace any damaged door trim seal.
Remove the front door belt inside weatherstrip (A).
Remove the front door belt outside weatherstrip (A).
By operating the power window switch, fall down until seeing the glass mounting bolt on plug hole.
Be careful not to damage the glass surface.
Before removing the front door glass (A), loosen the mounting bolt (B) as loosely as possible and loosen the mounting bolt (C) completely.
Tightening torque :
7.8 ~ 11.8 N.m (0.8 ~ 1.2 kgf.m, 5.8 ~ 8.7 lb-ft)

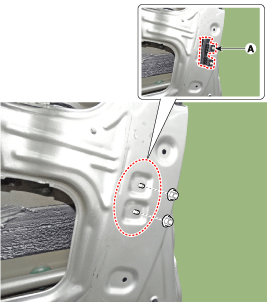

After loosening the mounting nuts, remove the front door channel (A).
Install in the reverse order of removal.
Roll the glass up and down to see if it moves freely without binding.
Adjust glass position as needed.
Make sure the door lock and opens properly.
Replace any damaged clips.
