3.
Install in the reverse order of removal.
caution
●
Replace any damaged clips.
1. Roof rack front cover 2. Roof rack rear cover | 3. Roof rack assembly |
Put on gloves to protect your hands.
When prying with a flat-tip screwdriver or use a prying trim tool, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
Take care not to scratch the body surface.

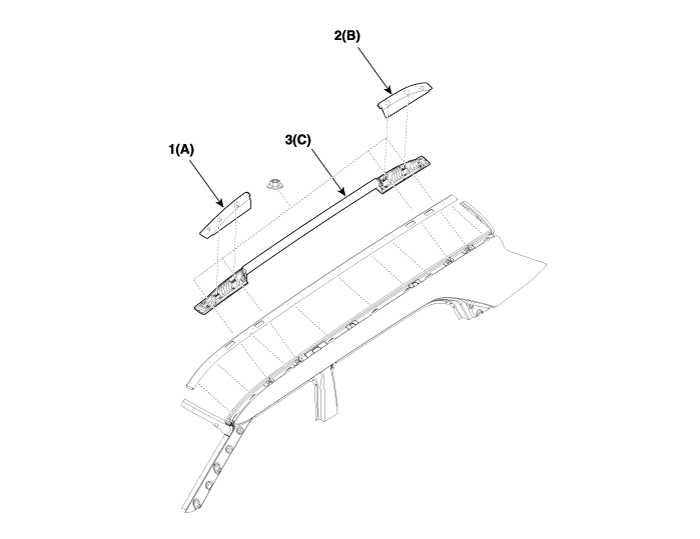

Remove the roof rack front cover (A) and roof rack rear cover (B).
After loosening the mounting nut, then remove the roof rack assembly (C).
Tightening torque :
5.9 ~ 6.4 N.m ( 0.6 ~ 0.65 kgf.m, 4.3 ~ 4.7 lb-ft )
Install in the reverse order of removal.
Replace any damaged clips.
1. Roof rack front cover 2. Roof rack rear cover | 3. Roof rack assembly |
