1.
Remove the gear knob & boots (A) after turning in the counter clock-wise direction.
Put on gloves to protect your hands.
When prying with a flat-tip screwdriver or use a prying trim tool, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
Take care not to scratch the body surface.
Remove the gear knob & boots (A) after turning in the counter clock-wise direction.
Using a screwdriver or remover, remove the front console upper cover (A).
Disconnect the connectors (A).
Remove the tray (B) by using remover holder hole after removing the rubber mat (A).
Disconnect the multimedia jcak connectors (A).
Using a screwdriver or remover, remove the parking brake cover (A).
Remove the storage box pad (A).

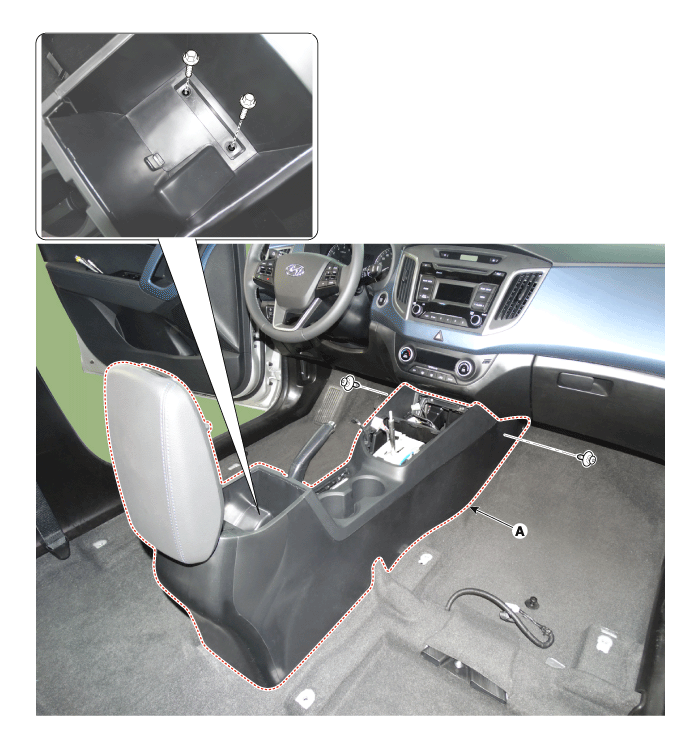

After loosening the mounting clips and bolts, then remove the floor console assembly (A).
Install in the reverse order of removal.
Replace any damaged clips.
Make sure the connector is connected properly.
Put on gloves to protect your hands.
When prying with a flat-tip screwdriver or use a prying trim tool, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
Take care not to scratch the body surface.
Remove the gear knob & boots (A) pull both of it up.
Using a screwdriver or remover, remove the front console upper cover (A).
Disconnect the connectors (A).
Remove the tray (B) by using remover holder hole after removing the rubber mat (A).
Disconnect the multimedia jcak connectors (A).
Using a screwdriver or remover, remove the parking brake cover (A).
Remove the storage box pad (A).
After loosening the mounting clips and bolts, then remove the floor console assembly (A).
Install in the reverse order of removal.
Replace any damaged clips.
Make sure the connector is connected properly.
