8.
Install in the reverse order of removal.
caution
●
Replace any damaged clips.

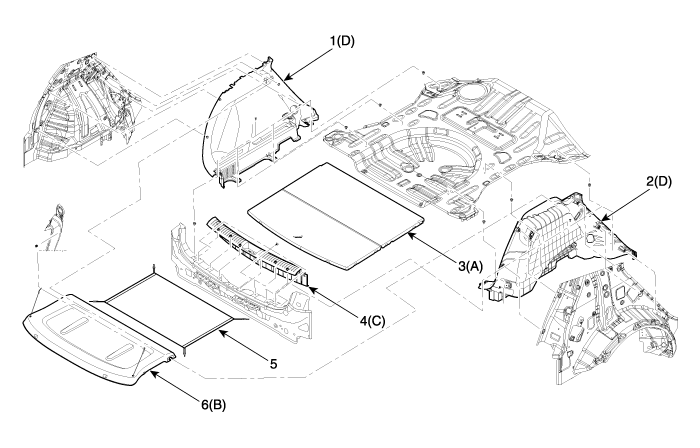

1. Luggage side trim [LH] 2. Luggage side trim [RH] 3. Luggage covering board | 4. Rear transverse trim 5. Luggage net assembly 6. Covering shelf trim |
Put on gloves to protect your hands.
When prying with a flat-tip screwdriver or use a prying trim tool, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
Use a plastic panel removal tool to remove interior trim pieces to protect from marring the surface.
Take care not to bend or scratch the trim and panels.
Remove the rear seat cushion assembly.
(Refer to Rear Seat - "Rear Seat Assembly")
Remove the rear seat back assembly.
(Refer to Rear Seat - "Rear Seat Assembly")
Remove the rear door scuff trim.
(Refer to Interior Trim - "Door Scuff Trim")
Remove the luggage covering board (A).
Remove the covering shelf trim (B).
Remove the rear transverse trim (C).
After loosening the mounting screws, then remove the luggage side trim (D).
Install in the reverse order of removal.
Replace any damaged clips.
1. Luggage side trim [LH] 2. Luggage side trim [RH] 3. Luggage covering board | 4. Rear transverse trim 5. Luggage net assembly 6. Covering shelf trim |
