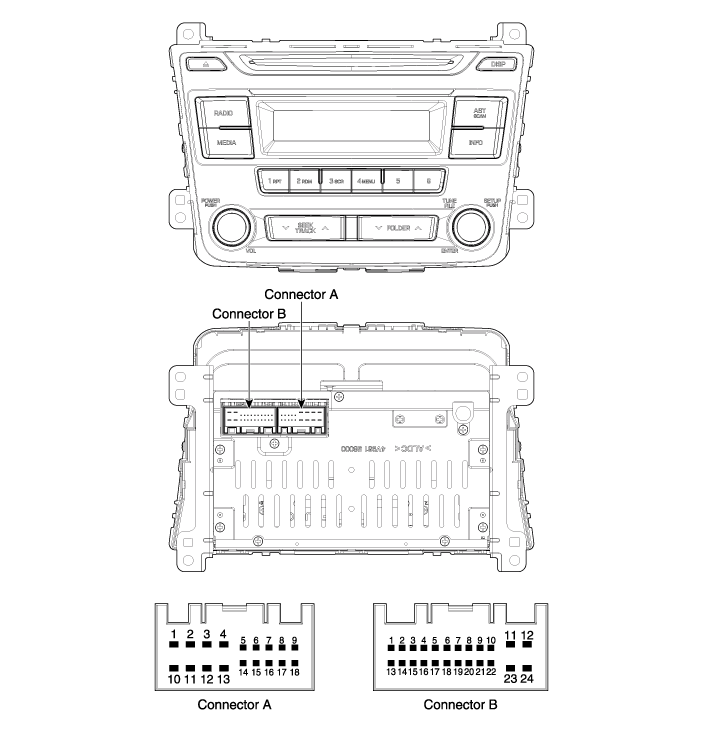

No | Connector A | Connector B |
1 | Rear left speaker (+) | - |
2 | Front left speaker (+) | - |
3 | Front right speaker (+) | - |
4 | Rear right speaker (+) | Steering wheel remote |
5 | - | - |
6 | - | USB D (+) |
7 | - | USB VDD |
8 | Illumination (+) | AUX R IN |
9 | Detent | AUX GND |
10 | Rear left speaker (-) | - |
11 | Front left speaker (-) | ACC |
12 | Front right speaker (-) | B+ |
13 | Rear right speaker (-) | - |
14 | - | - |
15 | - | - |
16 | - | - |
17 | Illumination (-) | Remote GND |
18 | Remote antenna | USB D (-) |
19 | USB GND | |
20 | AUX DETECT | |
21 | AUX L IN | |
22 | - | |
23 | - | |
24 | Power GND |

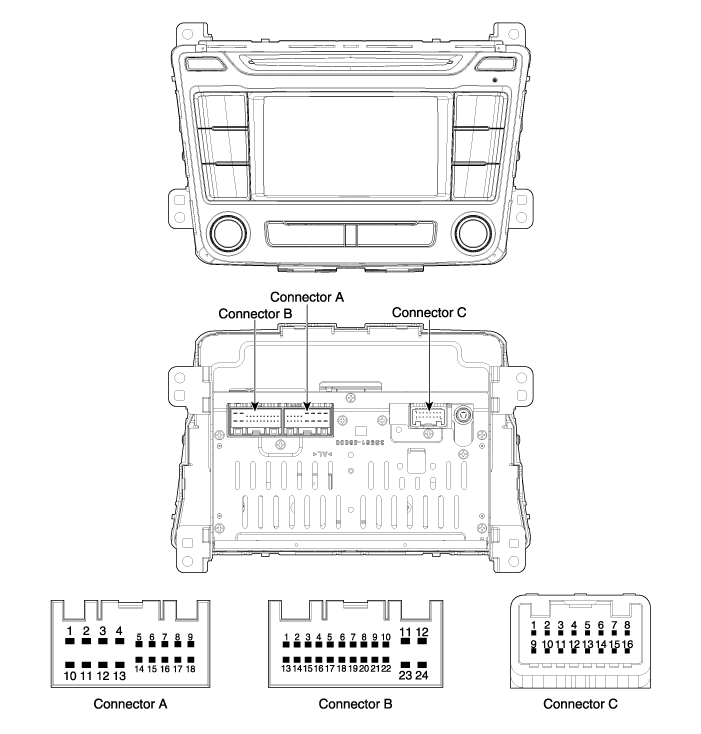

No | Connector A | Connector B | Connector C |
1 | Rear left speaker (+) | - | - |
2 | Front left speaker (+) | - | - |
3 | Front right speaker (+) | - | Camera GND |
4 | Rear right speaker (+) | Steering wheel remote | Camera video_Input |
5 | - | - | - |
6 | - | USB D (+) | - |
7 | - | USB VDD | - |
8 | Illumination (+) | AUX right_Input | - |
9 | - | AUX GND | - |
10 | Rear left speaker (-) | Mic (+) Bluetooth | Camera B (+) |
11 | Front left speaker (-) | ACC | P_GND |
12 | Front right speaker (-) | B+ | R_Detect |
13 | Rear right speaker (-) | - | - |
14 | - | - | - |
15 | - | - | - |
16 | - | Speed | - |
17 | Illumination (-) | Remote GND | |
18 | Remote antenna | USB D GND | |
19 | USB GND | ||
20 | AUX Detect | ||
21 | AUX left_Input | ||
22 | Mic (-) Bluetooth | ||
23 | - | ||
24 | Power GND |
