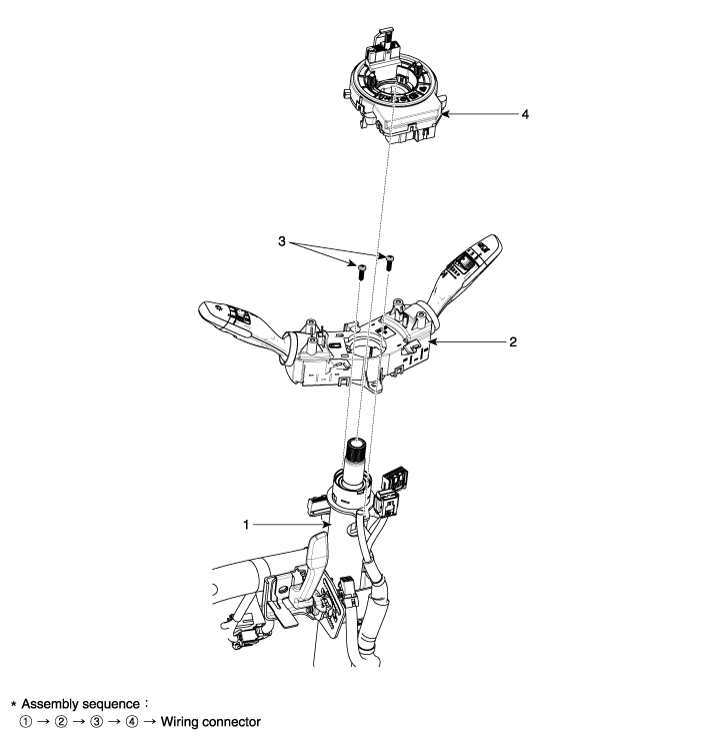

1. Steering column 2. Multifunction switch | 3. Screw 4. Clock spring |

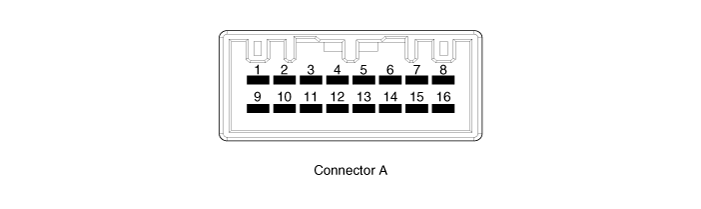

NO | Left Handle Drive Type | Right Handle Drive Type |
1 | Front wiper switch signal | Front washer switch |
2 | Front wiper low back signal | Front Wiper intermittent volume switch |
3 | - | Front wiper switch signal |
4 | Rear washer switch | - |
5 | - | - |
6 | Front washer switch | Front wiper low back signal |
7 | Front Wiper intermittent volume switch | IGN2 |
8 | IGN2 | Rear washer switch |
9 | GND | Rear wiper switch |
10 | Foglamp switch | Headlamp low backup signal |
11 | GND | Light switch |
12 | Turnsignal switch | Headlamp high switch signal |
13 | Headlamp high switch signal | Turnsignal switch |
14 | Light switch | Foglamp switch |
15 | Headlamp low backup signal | GND |
16 | Rear wiper switch | GND |
