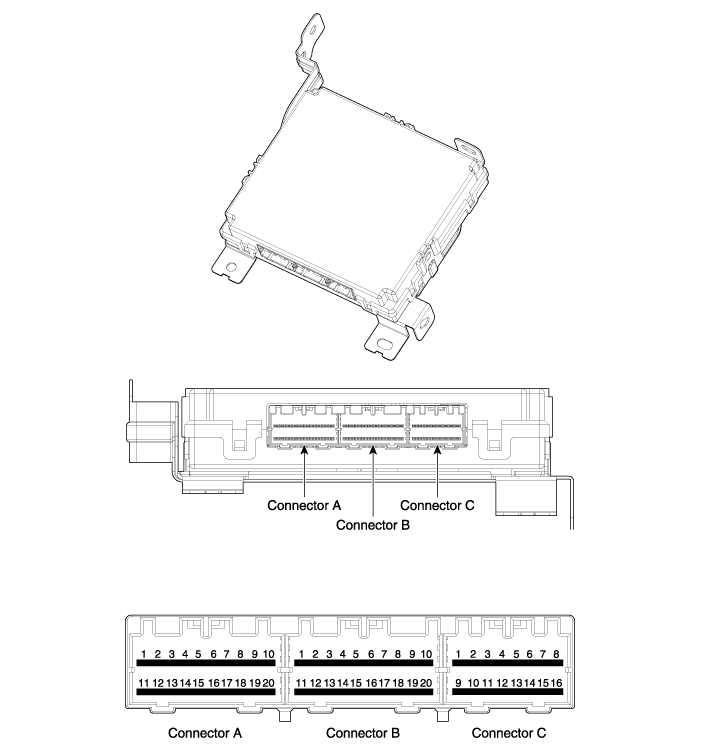

No | Connector A | Connector B | Connector C |
1 | BATT (+) | Driver out side handle antenna (Ground) | ESCL (ground) |
2 | BATT (+) | Driver out side handle antenna (Power) | ESCL Unlock switch |
3 | IGN 1 | - | ESCL Enable |
4 | IGN 2 relay | Body CAN (High) | - |
5 | IGN 1 relay | Body CAN (Low) | SSB Illumination (Blue) |
6 | - | Wheel speed sensol | SSB Illumination (Amber) |
7 | - | Inhibit P (AT Only) Clutch switch (MT Only) | SSB Illumination (+) |
8 | Interior antenna 2 (Ground) | - | SSB Illumination (-) |
9 | Interior antenna 1 (Ground) | Chassis CAN (Low) | Immobilizer antenna (Ground) |
10 | Bumper antenna (Ground) | Chassis CAN (High) | Immobilizer antenna (Power) |
11 | ACC | Ground | - |
12 | IGN 2 | Ground | Start feedback |
13 | ACC relay | - | Stop lamp fuse |
14 | Start relay | Driver out side handle switch | Brake switch |
15 | ESCL (+) | - | - |
16 | - | EMS_communication | Exterior buzzer |
17 | - | ESCL_communication | |
18 | Interior antenna 2 (Power) | RPM | |
19 | Interior antenna 1 (Power) | SSB switch 2 | |
20 | Bumper antenna (Power) | SSB switch 1 |
