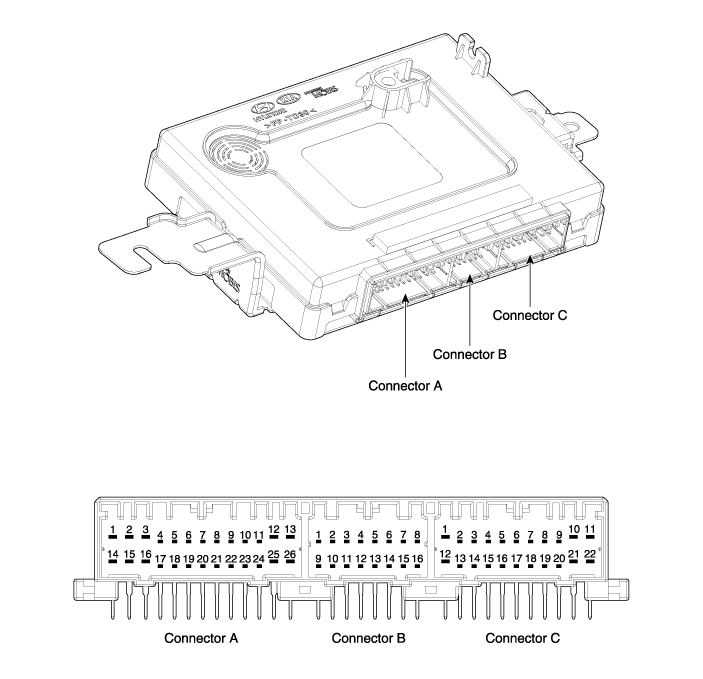

No | Connector A | Connector B | Connector C |
1 | Left static bending relay_output | - | Front wiper intermittent volume_input |
2 | Turn signal (Power)_output | RPAS (LIN) | Multifunction light switch_input |
3 | Left front turn signal_output | Diagnosis | Foglamp switch_input |
4 | Right rear turn signal_output | Ground (Multifunction switch) | Head lamp high switch_input |
5 | - | Front wiper low backup switch_input | Wiper parking state_input |
6 | Rear defogger relay_output | Brake switch_input | Airbac crash signal_input |
7 | AV tail_output | Wiper washer switch_input | - |
8 | Wiper relay (High / Low)_output | Body CAN (High) | - |
9 | - | - | - |
10 | Door lock relay_output | ATM solenoid_output | ACC_input |
11 | Rear wiper relay_output | - | Battery (+) |
12 | IGN 2_input | - | Ground |
13 | - | - | Front wiper switch_input |
14 | Static bending light (B+)_output | Rear washer switch_input | Turn signal switch_input |
15 | Right static bending relay_output | Inhibit switch (R) | Rear wiper switch_input |
16 | Right front turn signal_output | Body CAN (Low) | - |
17 | Left rear turn signal_output | Side Airbag (Option)_input | |
18 | Alarm horn relay_output | Rear defogger switch_input | |
19 | Wiper ON relay_output | Key IN switch_input | |
20 | Tailgate unlock relay_output | Hazard switch_input | |
21 | Safety power window enable_output | Roomlamp_output | |
22 | Door unlock relay_output | IGN 1 | |
23 | Start inhibit relay_output | ||
24 | MTS TX_output | ||
25 | - | ||
26 | Ground |
