1.

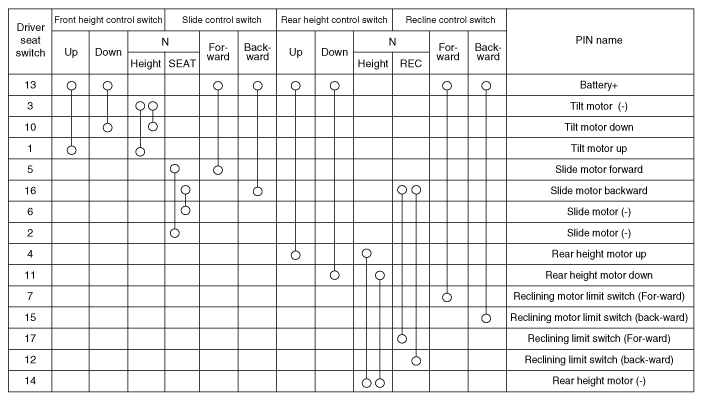

With the power seat switch in each position, make sure that continuity exists between the terminals below. If continuity is not as specified, replace the power seat switch.
With the power seat switch in each position, make sure that continuity exists between the terminals below. If continuity is not as specified, replace the power seat switch.
Disconnect the negative (-) battery terminal.
Remove the front seat shield outer cover.
(Refer to Body - "Front Seat Shield Outer Cover")
Remove the power seat control switch (A) after loosening the screws (3EA).
Install the power seat control switch after connecting the connector.
