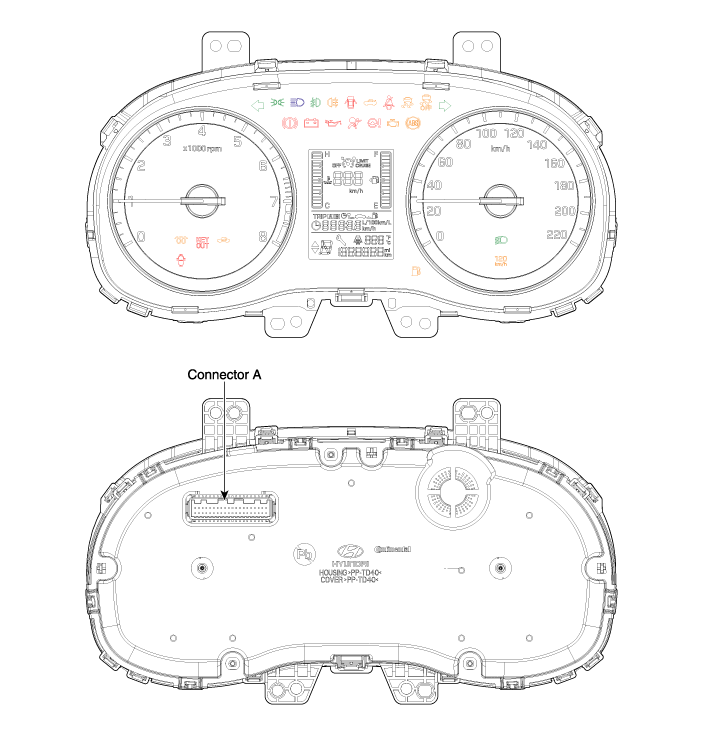

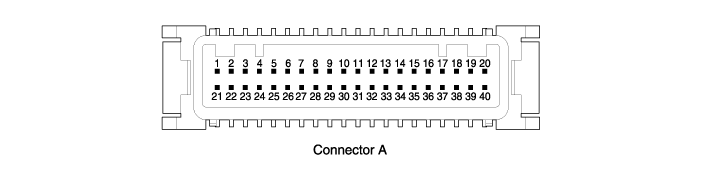

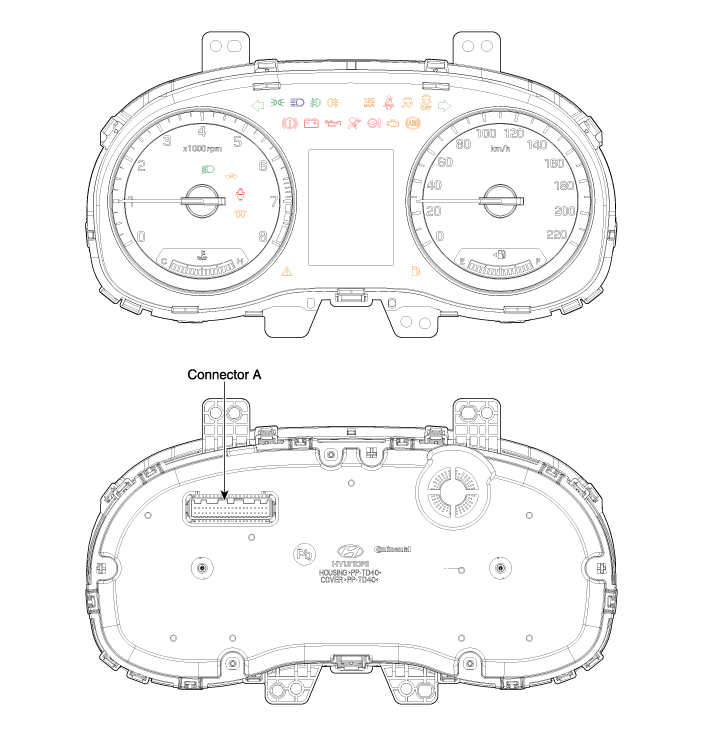

No | Description | No | Description |
1 | GND | 21 | Trip switch (-)_input |
2 | Illumination (-)_output | 22 | Trip switch1 (+)_input |
3 | Rheostat down switch | 23 | - |
4 | Rheostat up switch | 24 | AT (P) output |
5 | Alternator_input | 25 | AT (R) output |
6 | - | 26 | AT (N) output |
7 | - | 27 | AT (D) output |
8 | Oil Pressure switch_input | 28 | AT (S) output |
9 | Speed_output | 29 | B_CAN (Low) |
10 | - | 30 | B_CAN (High) |
11 | Alternator_output | 31 | - |
12 | Vehicle speed_input | 32 | C_CAN (High) |
13 | Air Bag (+)_input | 33 | C_CAN (Low) |
14 | Fuelsender (+)_input | 34 | - |
15 | Water seperator (+)_input | 35 | Detent_ouput |
16 | Fuelsender (-)_input | 36 | - |
17 | - | 37 | GND_signal |
18 | - | 38 | - |
19 | - | 39 | IGN 1 |
20 | Tail lamp_input | 40 | Battery (+) |
