1.
BI-FUNCTION
(1)
Definition
A.
A headlamp with integrated functions of high and low beam.
B.
The light is controlled by rotating the shield inserted to the lens (A solenoid is adopted)
(2)
Structure and mechanism
A.
in case of working as a low beam
: Only the low beam illuminates as the stopped shield blocks off the light.

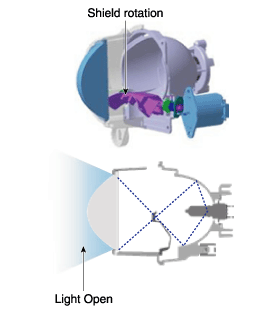

B.
in case of working as a high beam
: The light is not blocked off by the open shield so the light illuminates in the high beam area.
