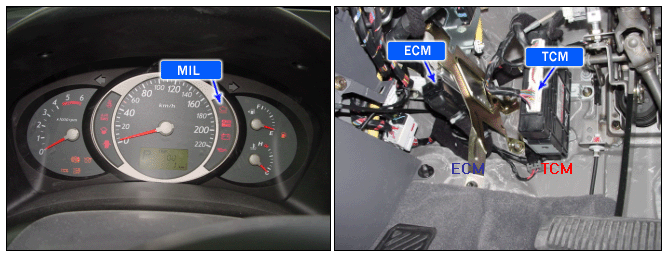

Component Location
General Description

Auto transaxle failure results are outputs as diagnosic codes by TCM.

In case of auto transaxle failure with locked in 3 rd gear,(AT control relay off) engine malfuntion indicator lamp is displayed by CAN communication between ECM and TCM in order to notify the driver.

DTC Description

If the auto transaxle generates threshold value, the ECM judged this as a fault and DTC is set.

DTC Detecting Condition

Item

Detecting Condition

Possible Cause

DTC Strategy

● TCM check

● Faulty auto transaxle

● Faulty ECM

Enable Conditions

● Engine run

Threshold Value

● Auto transaxle failure with locked in 3rd gear

Diagnostic Time

● 0.5 sec.

MIL

Fuel Limit

Fuel Cut

EGR Off

● Yes

● No

● No

● No
