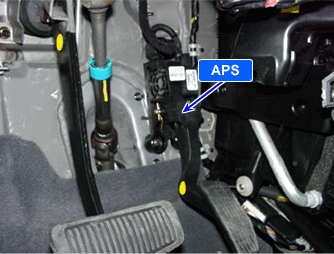

APS(Acceleration Position Sensor) is measured the driver’s acceleration using a potentiometer and APS signal is transmitted to the ECM. The pedal’s position is calculated from the voltage of potentiometer in the APS.
The absence of a mechanical link between the accelertor pedal and injection system presents a risk of loss of control of the engine in the event of a failure of the component in the charge of providing the driver’s request information to the injection system.
Therefore, APS has the two potentiometers whose slides are mechanically solid.
APS 1 decides to the fuel quantity and injection timing in the engine.
If the signal is below threshold value, the ECM judged this as a fault and DTC is set.
Item | Detecting Condition | Possible Cause |
DTC Strategy | ● Signal check, high | ● Short to battery in signal circuit ● Open in ground circuit ● Faulty APS ● Faulty ECM |
Enable Conditions | ● Ignition on | |
Threshold Value | ● Output signal > 4.91V | |
Diagnostic Time | ● 0.18 sec. | |
MIL Fuel Limit Fuel Cut EGR Off | ● Yes ● Yes ● No ● No | |
Fail safe | ● Engine speed is fixed at 1200 rpm without pedal sensor action. ● Engine performance is reduced. ● Air conditioning system is deactivited as against the vehicle speed and the engine rpm. ● Cruise control system inhibited. |
ECTS | ||
Temperature (°C) | 20 | 80 |
Resistance (kΩ) | 2.31 ~ 2.59 | 0.31 ~ 0.33 |
