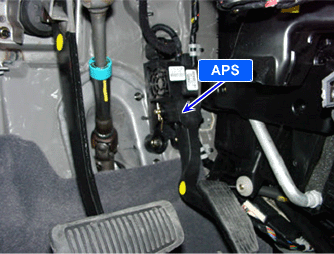

Component Location
DTC Detecting Condition

Item

Detecting Condition

Possible Cause

DTC Strategy

● Voltage range check

● Short in power circuit

● Open in power circuit

● Faulty APS

● Faulty ECM

Enable Conditions

● Ignition on

Threshold Value

● 4.7 V < Sensor supply voltage < 5.1 V

Diagnostic Time

● 0.1 sec.

MIL

Fuel Limit

Fuel Cut

EGR Off

● Yes

● Yes

● No

● No

Fail safe

● Engine speed is fixed at 1200 rpm without pedal sensor action.

● Engine performance is reduced.

● Air conditioning system is deactivited as against the vehicle speed and the engine rpm.

● Cruise control system inhibited.

Specification

APS

Accel pedal position

Idle Position (0%)

Fully Open Position (100%)

Signal votage

0.6 ~ 0.9 V

3.5 ~ 4.7 V

Schematic Diagram

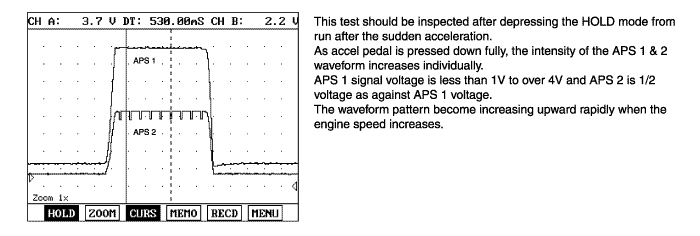

Signal Waveform
