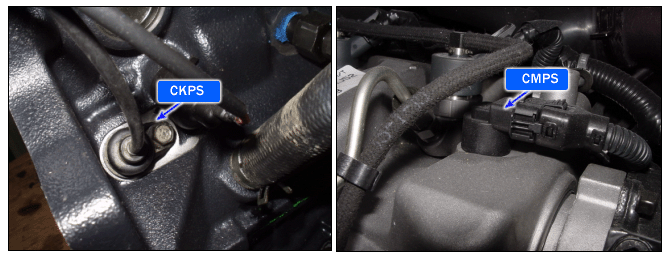

Component Location
Description

The crankshaft angular sensor detects and counts the teeth on the crankshaft and provides ECM with the information on the current position of crank angle and cylinder. This signal is fed to ECM to be used to determine the engine speed and adjust the fuel injection timing. The camshaft position sensor detects the teeth target wheel and provides ECM with the information on the current position of piston and cylinder.

This signal is fed to ECM to be used to determine the sequence of fuel injection.

In case of the the crankshaft angular sensor or the camshaft position sensor failure, the engine symptoms will occur a running engine stall, starting impossible and rough idle with noise.

If the CMP signal is not geneated, the ECM judged this as a fault and DTC is set.

DTC Detecting Condition

Item

Detecting Condition

Possible Cause

DTC Strategy

● Signal check

● Short to ground in signal circuit

● Faulty CMP

● Faulty CMP dowel pin

● Faulty ECM

Enable Conditions

● Engine run

Threshold Value

● If the CAM signal frequency detects too many edges

Diagnostic Time

● 0 sec.

MIL

Fuel Limit

Fuel Cut

EGR Off

● No

● No

● Yes

● No

Specification

CKP

Resistance

860 ± 10% Ω at 20°C

Schematic Diagram
Signal Waveform
