Operation
The Side Impact sensor (SIS) assy circuit includes a diagnosis circuit and a lateral deceleration sensor. It recieves signals from the lateral deceleration sensor, detects and diagnosis system malfunctions, and judges whether or not the SRS mus

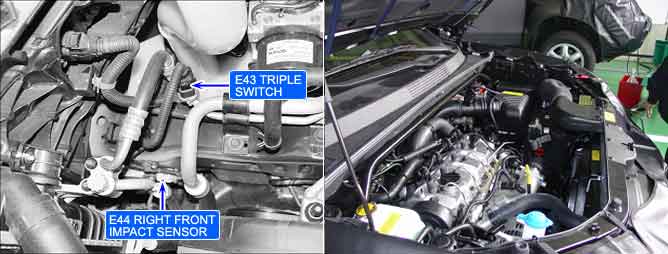

DTCs B1332 are recorded when a malfunction in the Front Impact Sensor assembly (right front) is detected.
Item | Detecting Condition | Possible Cause | |
DTC Strategy | ● When the circuit short to Battery | ● Short circuit to the Battery B+ ● Short circuit in the sensor to B+ | |
Enable Conditions | ● Ignition "ON" | ||
Threshold Value | ● Voltage Below 1V (Voltage between wire and body ground) | ||
Diagnostic Time | Qualification | ● More then 2 sec remaining | |
De-Qualification | ● More then10 sec remaining | ||
Test Condition | Resister (Ω) |
Ignition OFF |
