Operation
The Side Impact sensor (SIS) assy circuit includes a diagnosis circuit and a lateral deceleration sensor. It recieves signals from the lateral deceleration sensor, detects and diagnosis system malfunctions, and judges whether or not the SRS must be activated. .

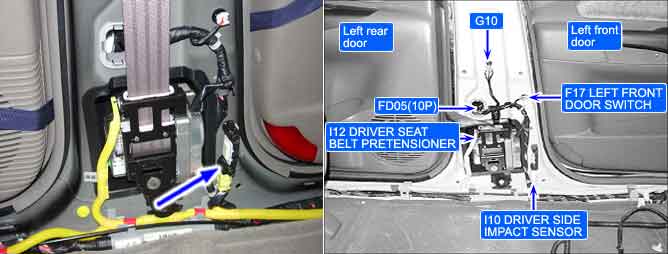

DTC B1401 is recorded when occurrence of a malfunction in the Side Impact sensor assy (Left side)is detected.
Item | Detecting Condition | Possible Cause | |
DTC Strategy | ● When the circuit short to ground | ● Short circuit to the ground ● Short circuit in the sensor to ground | |
Enable Conditions | ● Ignition "ON" | ||
Threshold Value | ● 1MΩ or Higher (Resister between wire and body ground) | ||
Diagnostic Time | Qualification | ● More than 2 sec remaining | |
De-Qualification | ● More than10 sec remaining | ||
Test Condition | Resister (Ω) |
Ignition OFF | R ≤ 1MΩ |
