DESCRIPTION
1. GENERAL DESCRIPTION

1st Gear Recognition Switch is used to control fuel quantity and improving a climb performance when going up a sloping road.

This monitoring is to detect the implausible input from 1 st gear recognition switch or neutral switch and carried out only once in the same driving cycle.

2. DTC DESCRIPTION

If the auto transaxle generates threshold value, the ECM judged this as a fault and DTC is set.

DTC DETECTING CONDITION

Item

Detecting Condition

Possible Cause

DTC Strategy

● Circuit continuity check

Short in 1st gear recognition switch power circuit

Faulty 1st gear recognition switch

Faulty ECM

Enable Conditions

● Engine run

Threshold Value

● Short for 1st gear recognition switch circuit

Diagnostic Time

● 1 sec.

MIL

Fuel Limit

Fuel Cut

EGR Off

● No

● No

● No

● No

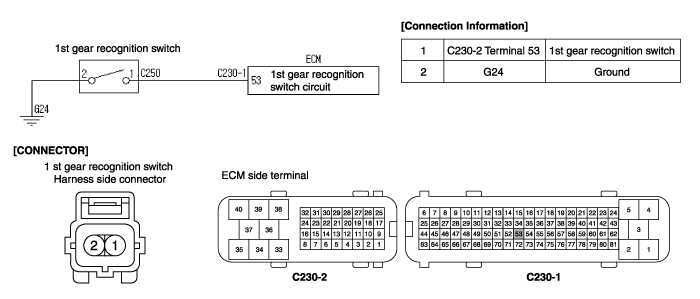

SCHEMATIC DIAGRAM
TERMINAL & CONNECTOR INSPECTION
1.

Many malfunctions in the electrical system are caused by poor harness and terminals.

Faults can also be caused by interference from other electrical systems, and mechanical or chemical damage.

2.

Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage.

3.

Has a problem been found?

▶ Repair as necessary and go to "Verification of Vehicle Repair" procedure.

▶ Go to " Power Circuit Inspection " procedure.

POWER CIRCUIT INSPECTION
1.

Ignition "OFF" & Engine "OFF".

2.

Disconnect 1st gear recognition switch connector.

3.

Ignition "ON" & Engine "OFF".

4.

Measure voltage between terminal 1 of the 1st gear recognition switch harness connector and chassis ground.

Specification : Approx. B+

5.

Is the measured voltage within specifications ?

▶ Go to "Component Inspection" procedure.

▶ Check for short to battery in the power harness.

Repair as necessary and go to "Verification of Vehicle Repair" procedure.

COMPONENT INSPECTION
1.

Check 1st gear recognition switch.

(1)

Ignition "OFF" & Engine "OFF".

(2)

Disconnect 1st gear Recognition Switch.

(3)

Measure continuity between terminal 1 and 2 of clutch switch connector (Component side).

SPECIFICATIONS

1st gear recongnition switch ON

1st gear recognition switch OFF

Continuity (Below 1Ω)

No continuity (∞ Ω)

(4)

Is the measured resistance within specifications ?

▶ Substitute with a known-good ECM and check for proper operation.

If the problem is corrected, replace ECM and then go to "Verification of Vehicle Repair" procedure.

▶ Substitute with a known-good 1st gear recognition switch and check for proper operation.

If the problem is corrected, replace 1st gear recognition switch and then go to "Verification of Vehicle Repair" procedure.

VERIFICATION OF VEHICLE REPAIR

After a repair, it is essential to verify that the fault has been corrected.

1.

Connect scan tool and select "Diagnostic Trouble Codes(DTCs)" mode and then clear DTC.

2.

Operate the vehicle within DTC Enable conditions in General information.

3.

Are any DTCs present ?

Go to the applicable troubleshooting procedure.

System is performing to specification at this time.
