GENERAL DESCRIPTION

The FPR (Fuel Pressure Regulator) sets the correct pressure in the rail as a function of engine, loading and maintains it at this level.

If the rail pressure is excessive, the pressure control valve opens and a portion of the fuel returns from the rail to the fuel tank via a collector line.

If the rail pressure is too low, the pressure control valve closes and seals off the high pressurestage from the low pressure stage.

In case of the fuel pressure regulator failure, the engine symptoms will occur the shut down and the starting impossible.

DTC DESCRIPTION

If the FPR circuit generates threshold value, the ECM judged this as a fault and DTC is set.

DTC DETECTING CONDITION

Item

Detecting Condition

Possible Cause

DTC Strategy

● Circuit continuity check

Open or short in power circuit

Open or Short to ground in control circuit

Faulty FPR

Faulty RPS

Faulty ECM

Enable Conditions

● Engine run

Threshold Value

● Open or Short for fuel pressure regulator circuit

Diagnostic Time

● 0.3 sec.

MIL

Fuel Limit

Fuel Cut

EGR Off

● Yes

● No

● Yes

● No

SPECIFICATION

Fuel Pressure Regulator

Resistance

2.07 ~ 2.53Ω at 20°C

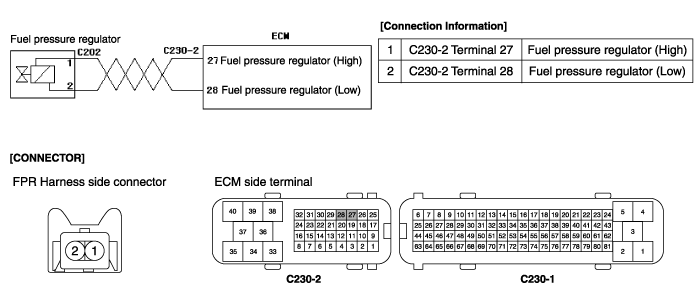

SCHEMATIC DIAGRAM

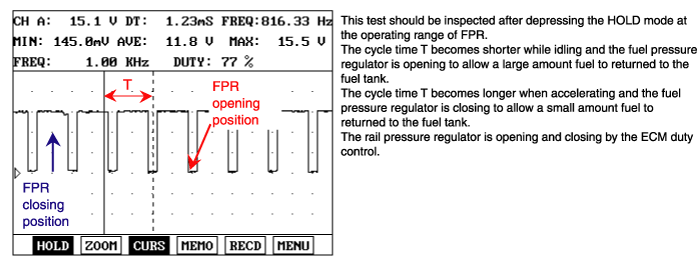

SIGNAL WAVEFORM
MONITOR SCANTOOL DATA
1.

Connect scantool to Data Link Cable (DLC).

2.

Warm up engine to normal operating temperature.

3.

Monitor that " Fuel Pressure Regulator " parameter on the scantool.

FIG 1
FIG 2

Fig 1) Normal value with fuel pressure regulator and fuel pressure at idle.

Fig 2) Normal value with fuel pressure regulator and fuel pressure while accelerating and decelerating.

Is the Current data displayed correctly ?

▶ Fault is intermittent caused by poor contact in the sensor’s and/or ECM’s connector or was repaired and ECM memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and go to "Verification vehicle Repair" procedure.

▶ Go to "W/Harness Inspection" procedure.

TERMINAL & CONNECTOR INSPECTION
1.

Many malfunctions in the electrical system are caused by poor harness and terminals.

Faults can also be caused by interference from other electrical systems, and mechanical or chemical damage.

2.

Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage.

3.

Has a problem been found?

Repair as necessary and go to "Verification of Vehicle Repair" procedure.

Go to "W/Harness Inspection" procedure.

POWER CIRCUIT INSPECTION
1.

Ignition "OFF" & Engine "OFF".

2.

Disconnect Rail Pressure regulator connector.

3.

Ignition "ON" & Engine "OFF".

4.

Measure voltage between terminal 1 of the rail pressure regulator harness connector and chassis ground.

Specification : Approx. 11.5 ~ 13.5V

5.

Is the measured voltage within specifications ?

▶ Go to " Ground Circuit Inspection" procedure.

▶ Check for short to battery in the power harness.

Repair as necessary and go to "Verification of Vehicle Repair" procedure.

CONTROL CIRCUIT INSPECTION
1.

Check for short to battery in harness.

(1)

Ignition "OFF".

(2)

Disconnect Rail pressure regulator connector.

(3)

Measure voltage between terminal 2 of rail pressure regulator harness connector and chassis ground.

Specification : Infinite

(4)

Is the measured voltage within specifications ?

▶ Go to " Check for open in harness " as below.

▶ Check for short to ground in ground harness.

Repair as necessary and go to "Verification of Vehicle Repair" procedure .

2.

Check for open in harness.

(1)

Ignition "OFF".

(2)

Disconnect Rail pressure regulator and ECM connector.

(3)

Measure registance between terminal 2 of rail pressure regulator harness connector and terminal 28 of ECM harness connector.

Specification : Approx. below 1Ω

(4)

Is the measured resistance within specifications ?

▶ Go to " Component Inspection " procedure.

▶ Check for open in ground harness.

Repair as necessary and go to "Verification of Vehicle Repair" procedure.

COMPONENT INSPECTION
1.

Check Rail Pressure Regulator.

(1)

Ignition "OFF".

(2)

Disconnect Rail Pressure Regulator.

(3)

Measure resistance between terminal 1 and 2 of rail preussure regulator connecor(Component side).

Specification : 2.07 ~ 2.53 Ω (20°C)

(4)

Is the measured resistance within specifications ?

▶ Go to " Check regulating pressure " as below.

▶ Substitute with a known-good rail pressure regulator and check for proper operation.

If the problem is corrected, replace rail pressure regulator and then go to "Verification of Vehicle Repair" procedure.

2.

Check regulating pressure.

(1)

Ignition "ON" & Engine "ON".

(2)

Ignition "OFF" then Igintion "ON" before Main relay OFF.

(3)

Monitor signal waveform or graph function of current data by connecting scantool at terminal 2 of Rail preussure regulator.

note
1.

If Main relay OFF, Monitoring current data is impossible. Because Sensor power is cut and communication between scantool and ECM is off.

2.

This test should be done without any leakage from injector nozzle, return line and high pressure line.

3.

Time to pressurize upto 250bar is required as shortly as possible after starting but the time to release the pressure to 100 bar after ignition off is required as quickly as passble. However, time to release the pressure from 100bar to 0bar is required as slowly as possible. Refer to picture1 and 2 as below.

Voltage

Pressure

Voltage for rail pressure sensor at idle keep up 1.2V ~ 1.4V.

Then, the voltage will drop to 0.7V at the point of Key off.

Finally Signal waveform shows that voltage is getting slow down.

Pressure detected by Rail pressure sensor keep up 250bar at idle.

Then, Pressure will drop rapidly upto 100bar at the point of key off.

Finally, Graph shows that pressure is getting slow down.

(4)

Is the rail pressure data displayed correctly ?

▶ Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and go to "Verification vehicle Repair" procedure.

▶ Perform Rail Pressure Sensor & Rail Pressure regulator Inspection procedure. For more detail information, refer to DTC P0192,P0193 and P0190 for Rail Pressure sensor and DTC P1182,P1183 and P1184 for Rail Pressure regulator troubleshooting procedure.

Repair or replace as necessary and go to "Verification of Vehicle Repair" procedure.

VERIFICATION OF VEHICLE REPAIR

After a repair, it is essential to verify that the fault has been corrected.

1.

Connect scan tool and select "Diagnostic Trouble Codes(DTCs)" mode and then clear DTC.

2.

Operate the vehicle within DTC Enable conditions in General information.

3.

Are any DTCs present ?

Go to the applicable troubleshooting procedure.

System is performing to specification at this time.
