3.
Replace the wheel if the wheel runout exceeds the limit.
Limit | Radial | Axial |
Runout mm(in.) | 0.3(0.012) | 0.3(0.012) |
Jack up the vehicle and support it with jack stands.

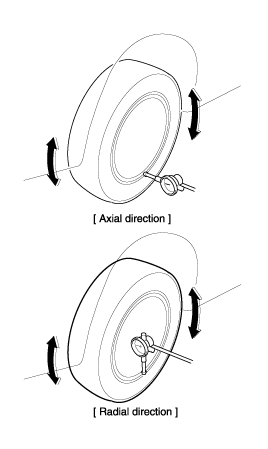

Measure the wheel runout with a dial indicator as illustrated.
Replace the wheel if the wheel runout exceeds the limit.
Limit | Radial | Axial |
Runout mm(in.) | 0.3(0.012) | 0.3(0.012) |
