5.

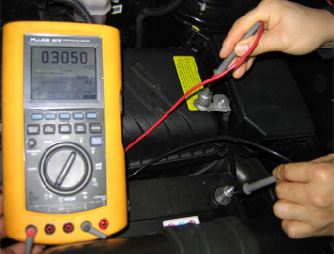

Measure current between battery (-) terminal and battery (-) cable.
caution
Probe(+) : Battery (-) cable
Probe(-) : Battery(-) terminal
A.
Specification : Below 50mA
If MIL on the cluster lights faintly, the battery runs out. So, check the load state of the electric parts. And then check if the battery is normal or not by measuring dark current.
IG "OFF"
Remove the ignition key.
Select "A" range in ampere meter.
Disconnect the cable from battery (-) terminal.
Measure current between battery (-) terminal and battery (-) cable.
Probe(+) : Battery (-) cable
Probe(-) : Battery(-) terminal
Specification : Below 50mA
Is the measured current within Specification?
YES
Faulty battery
NO
Charge battery
- If the measured value is over threshold(50mA), Find out which system has the problem by removing the fuse one by one.
- Find out the cause of the problem refer to ETM.
