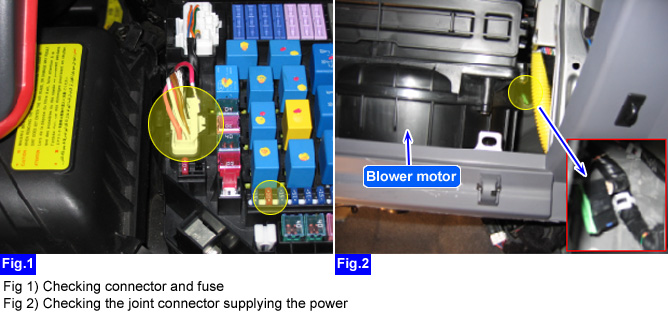

Almost all the engine stalling is caused by poor connection of the power and ground circuit. The purpose of inspection is to find the reason of the engine stalling by checking condition of the power and ground circuit. First of all check the fuse and connection condition of harness(connector).

4.

Check the connection condition of the joint connector supplying the power.

5.

Are connector, sensor fuse and joint connector normal?

YES

Go to "Ground circuit Inspection" procedure.

NO

Repair pins of the connector and fuse or Replace the harness.
