3.
Check spark plug condition and electrode gap.
A.
Specification : Electrode gap 0.039 ~ 0.043 in(1.0 ~ 1.1 mm)
The purpose of the Inspection is to analyze the cause of hesitation through spark plug and spark plug cable visual inspection.
IG "OFF"
Check leakage of electricity after removing spark plug cables.

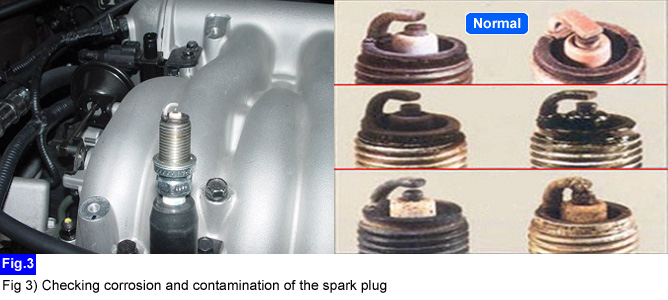

Check spark plug condition and electrode gap.
Specification : Electrode gap 0.039 ~ 0.043 in(1.0 ~ 1.1 mm)
Are the spark plug and cable normal?
YES
The spark plug and spark plug cable are OK.
NO
Replace the spark plug and spark plug cable.
Spark plug cable Resistance : 5.6㏀/m ± 20%
Spark plug (NGK : IFR5G-11)
